Lian Li O11D Mini V2 Flow Chassi - Black

Product description

News from Lian Li

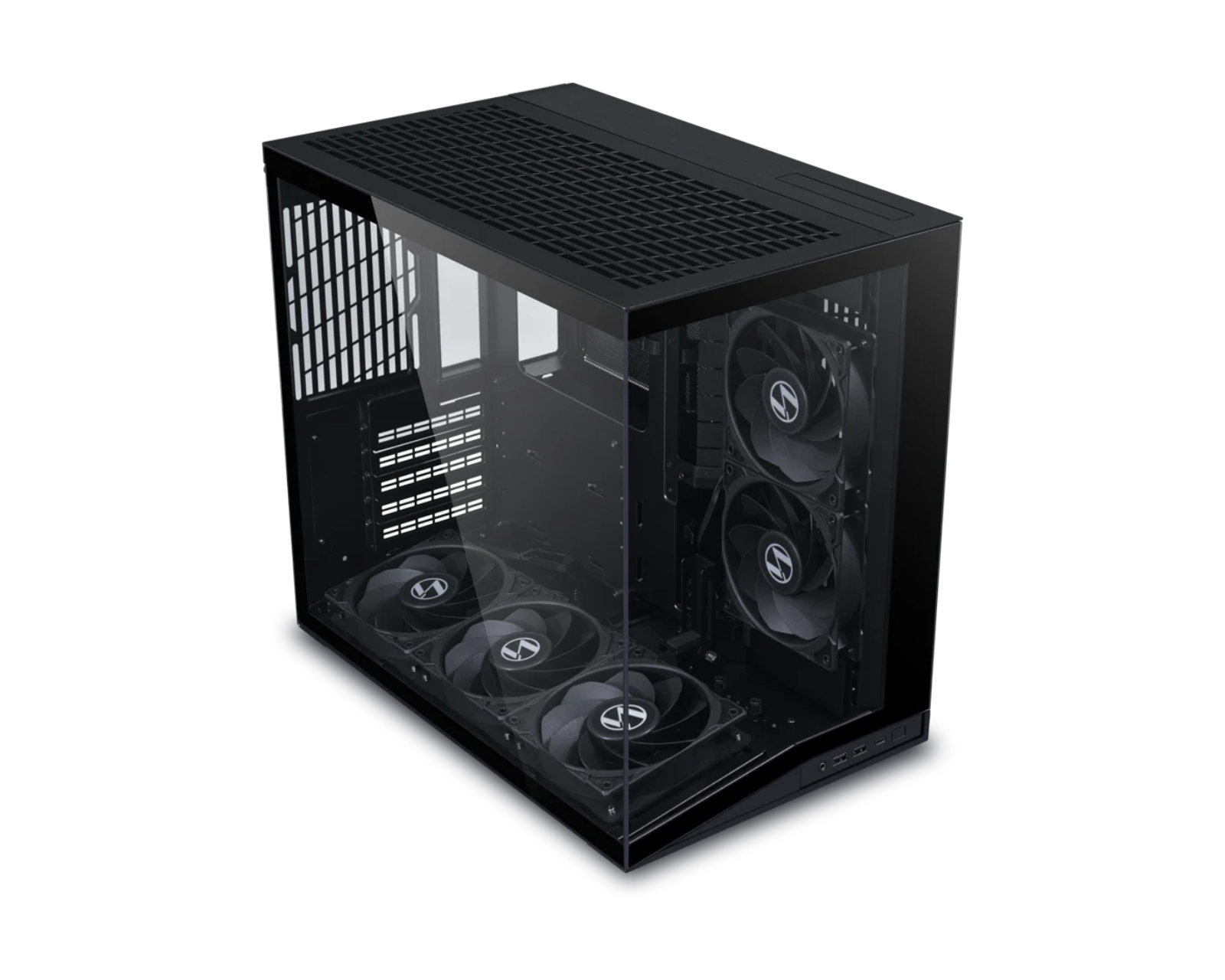

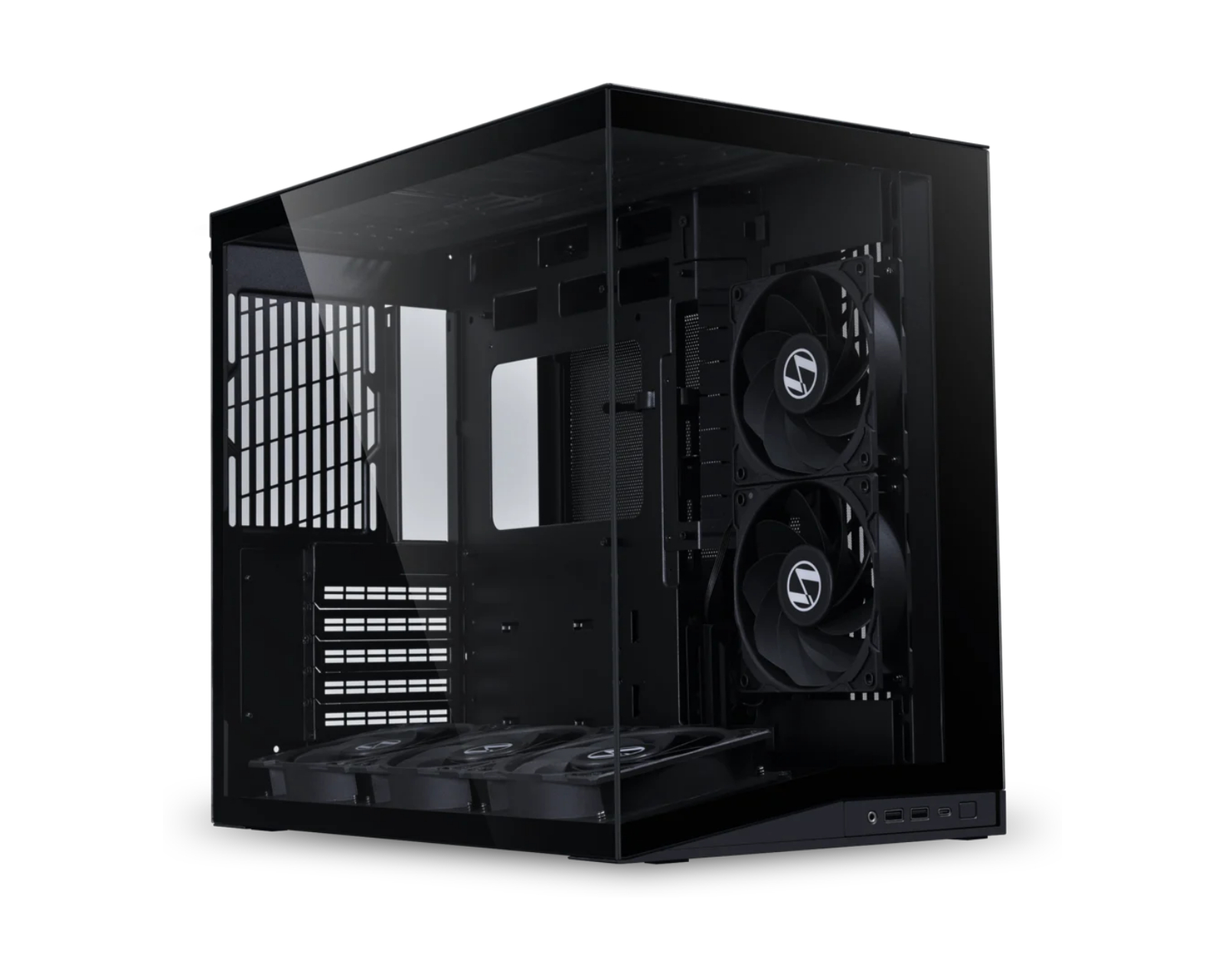

Lian Li O11D Mini V2 Flow is a chassis from Lian Li that offers a spacious interior despite its compact size. It is designed to enable installation of both air and water cooling, and also has the option for vertical mounting of graphics cards. Equipped with tempered glass on the sides and front, it is also easy to showcase your components.

Inside the chassis, there is generous space for high-performance hardware, allowing for the installation of graphics cards up to 400 mm. The chassis includes GPU brackets for both vertical and horizontal installation. Clean cable management is ensured through cable holders and support for motherboards with rear connection, which simplifies cable routing. Additionally, seven slots for fans, where five fans (three at the bottom and two with reversed blades on the side) are already installed, allow for effective cooling even under load.

Summary

• Compact chassis for efficient air and water cooling
• Support for graphics cards up to 400 mm
• Aimed at gamers and users building powerful systems
• Flexible cable management and support for motherboards with rear connection
• Includes five pre-installed fans for optimal cooling

Article number:

Our article number: 36714
Manuf. article number: G99.O11DMIV2FX.00

Front panel

Audio output (3,5mm)	Yes
Microphone input (3,5mm)	Yes
USB 3.0/3.1 Gen 1	2 pcs
USB 3.1 Gen2 Type-C	1 pcs

Hard drive

2.5'' (standard)	4 pcs
2.5''/3.5'' (standard)	4 pcs

Performance

Included fans

2 pcs 140mm, 2 pcs 92mm

Properties

Type of side panel	Glass clear
Side panel	Window
Motherboard support	ATX, mATX, Mini-ITX
Colour	Black
Dust filter	Yes
Expansion spots	5 pcs

Size & weight

Max height CPU-cooler	160 mm
Max length graphics card	400 mm
Max length PSU	200 mm
Width	273.3 mm
Depth	423.6 mm
Height	391.95 mm

Warranty

Manufacturer's warranty

2 year warranty
