SMSL RAW-HA1 DAC/AMP (DEMO)

Product description

Bargain cornerDemo from SMSL

DEMO: Return and test sample. Good condition.

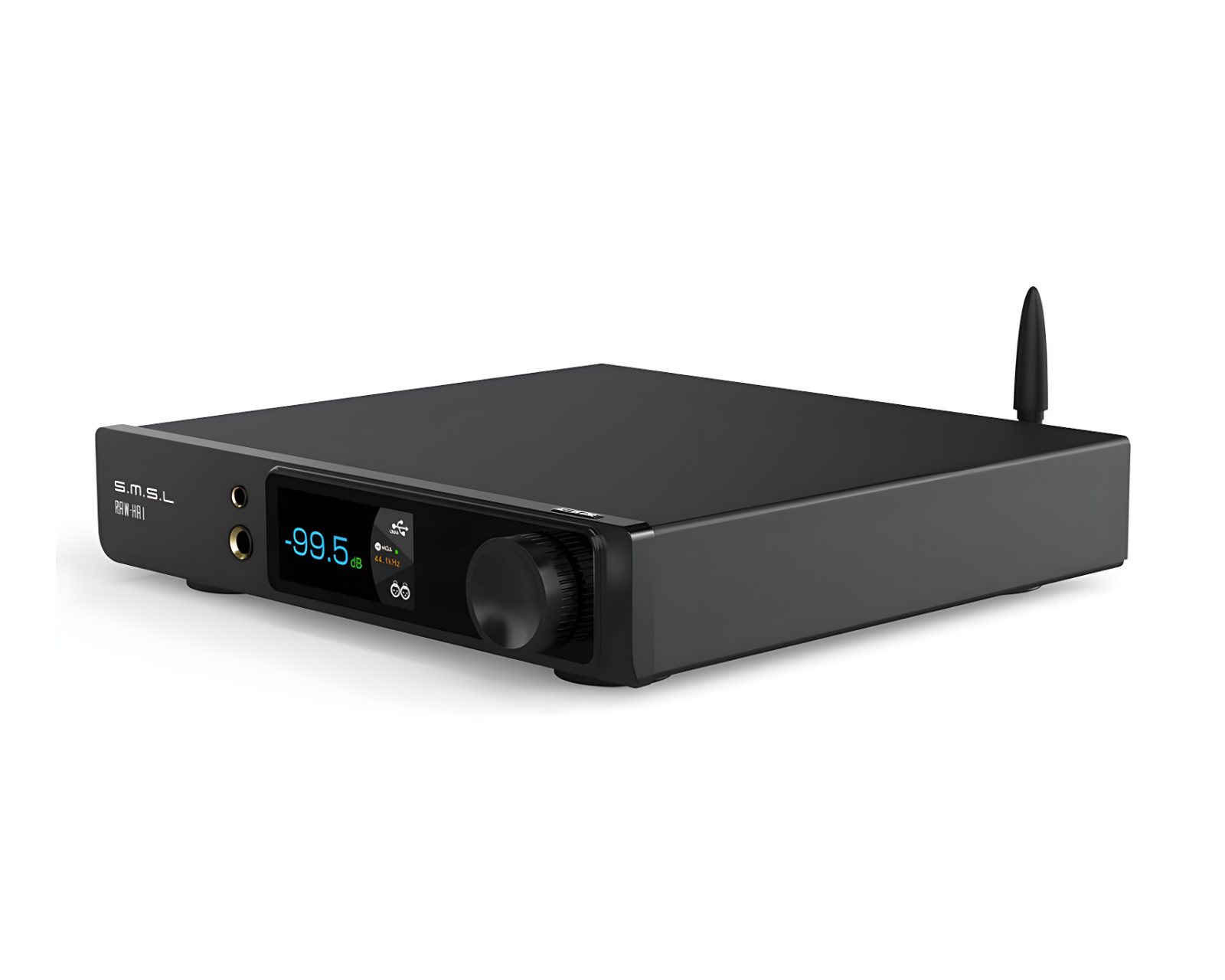

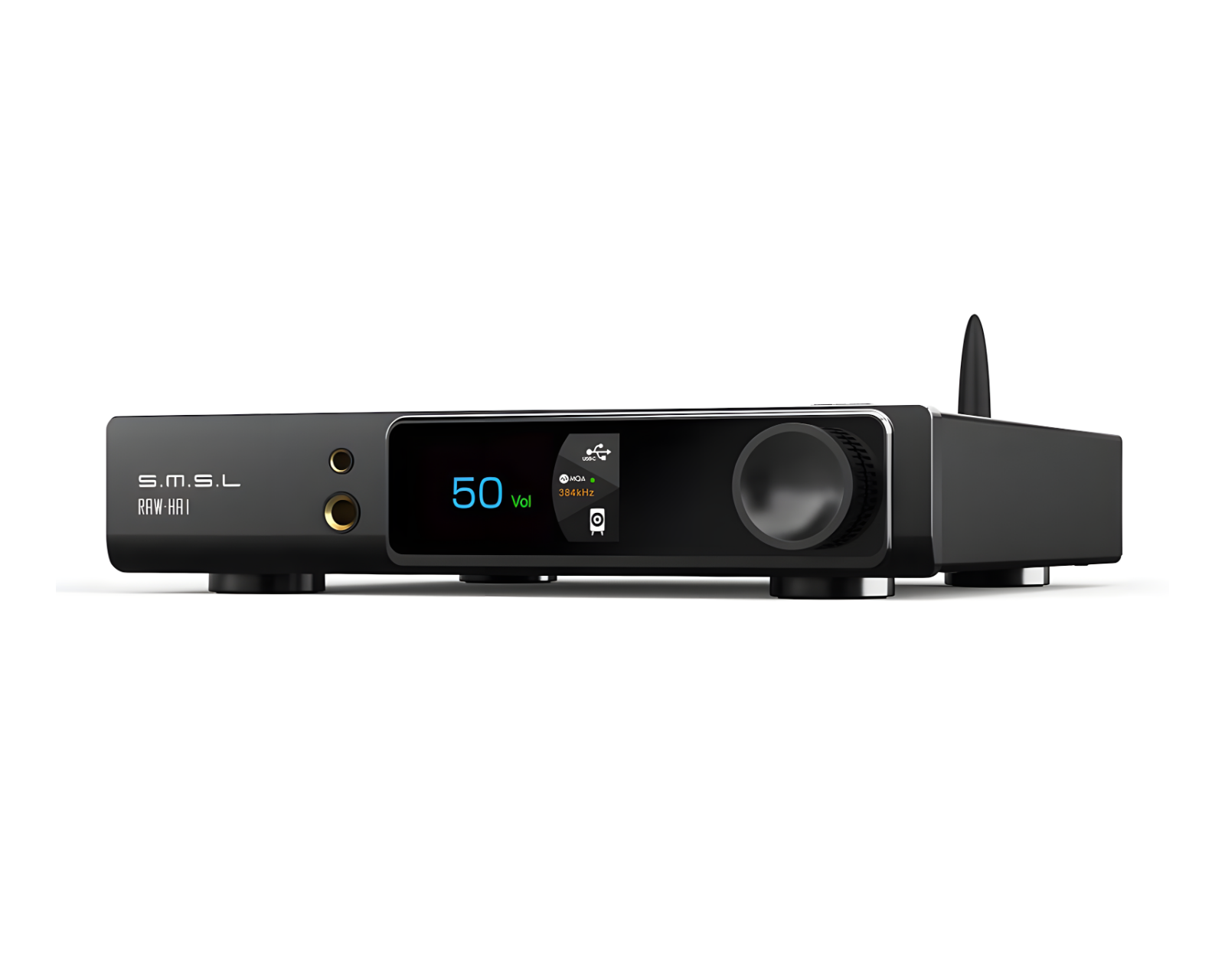

RAW-HA1 DAC/AMP is a digital audio converter and amplifier from SMSL that combines high sound quality with efficient performance. The product is equipped with the latest high-performance amplifier chip from Infineon and JRC's volume control chip NJW1194, which provides precise volume control and minimal distortion. It is aimed at audiophiles and gamers in need of consistent and clear audio reproduction.

The device supports MQA decoding and MQA-CD and uses the 3rd generation XMOS XU-316 to handle PCM up to 32 bit/768 kHz as well as DSD up to DSD256. Raw-HA1 also has built-in Bluetooth technology that enables support for LDAC, APTX/HD, SBC, and AAC. Furthermore, the CS43131 chip from Cirrus Logic is utilized for audio decoding. The product has high build quality with an aluminum alloy housing that has undergone CNC machining and anodization to achieve an elegant and durable finish. The user interface is intuitive, and a full remote control is included.

Summary

• High-quality DAC/AMP
• Supports MQA and PCM up to 32 bit/768 kHz
• Suitable for audiophiles and gamers
• Bluetooth with LDAC and APTX/HD
• Durable aluminum housing with CNC machining

Article number:

Our article number: D36503
Manuf. article number: 6970141850014

Audio output

	108dB

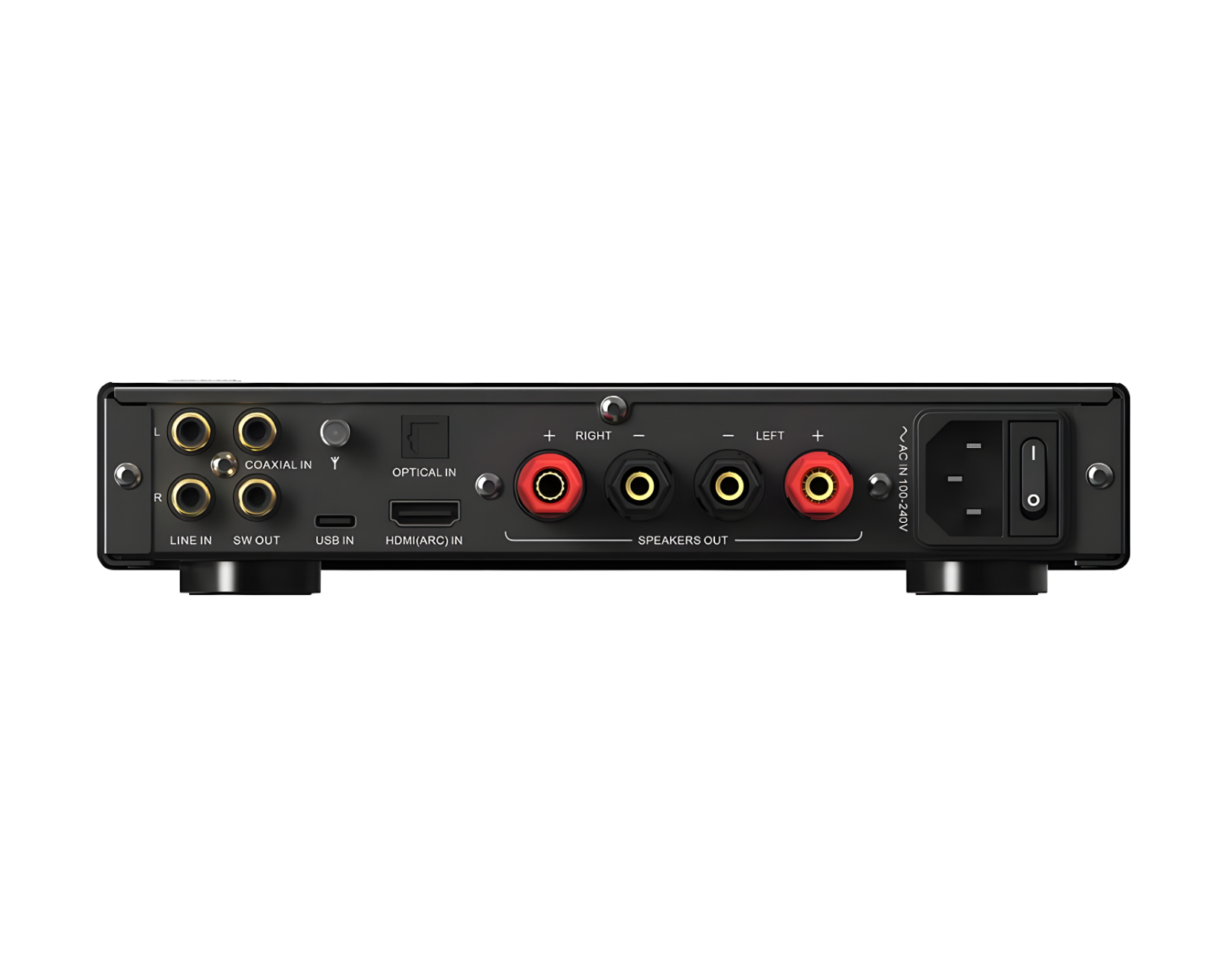

	HDMI (ARC), RCA (analog Line In), Bluetooth 5.1, USB-C, Optisk, Koaxial
	THD+N: 0.003%

Properties

	Cirrus Logic CS43131
	MQA & MQA-CD, PCM 32bit/768kHz, DSD256
	Högtalare: 165W×2 @ 4 Ω, 85W×2 @ 8 Ω

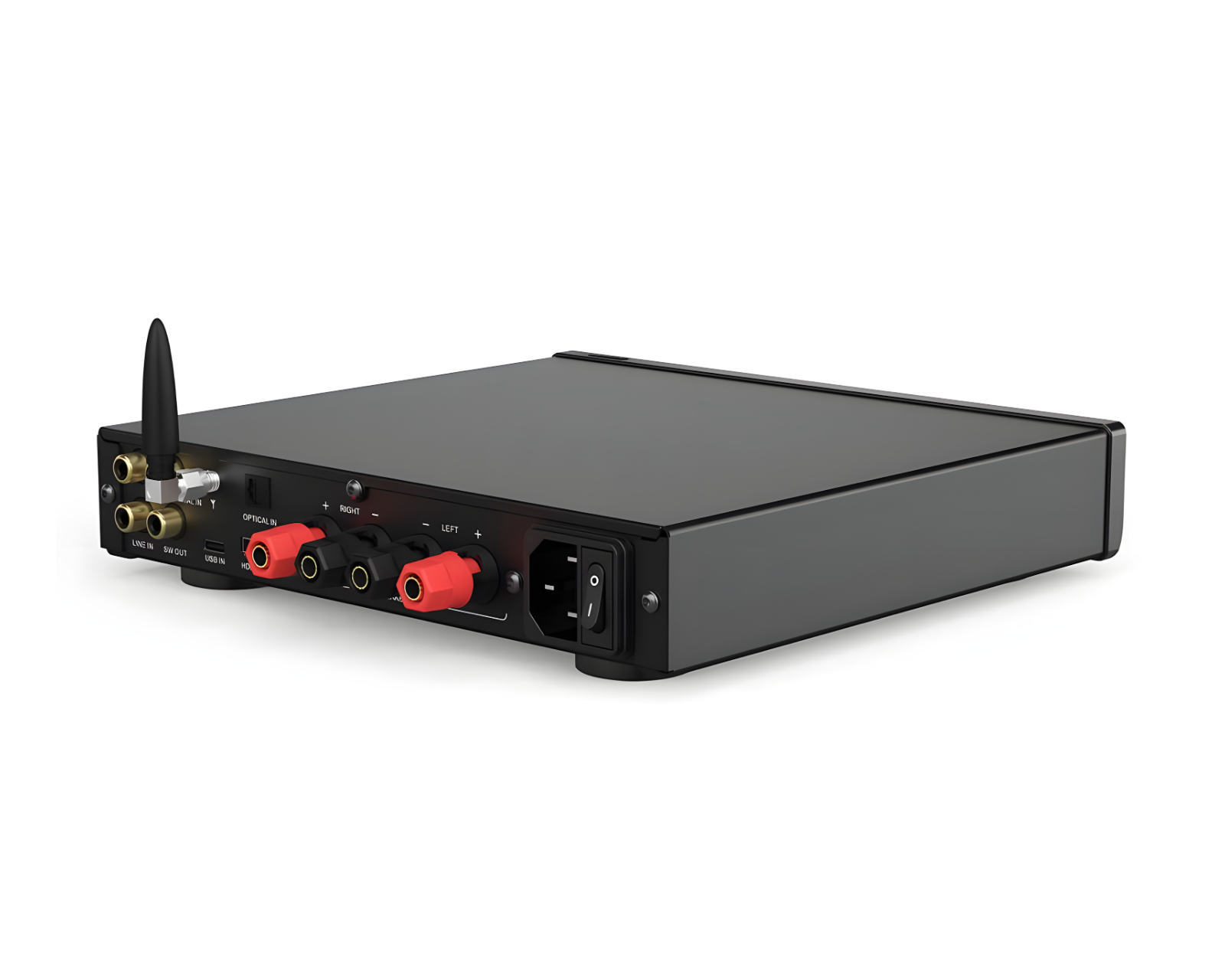

	Högtalarutgångar, Hörlursutgångar (6.35mm & 4.4mm balanserad), Subwoofer Pre-out
	Infineon Class D (för högtalare) och inbyggd hörlursförstärkare

Size & weight

Width	21,9 cm
Depth	19 cm
Height	4,5 cm
Weight	1550 g
