xDuoo TA-66 AMP - OTL Tube Headphone Amplifier (DEMO)

Product description

Bargain cornerDemo from xDuoo

DEMO: Returns and test samples. Good condition.

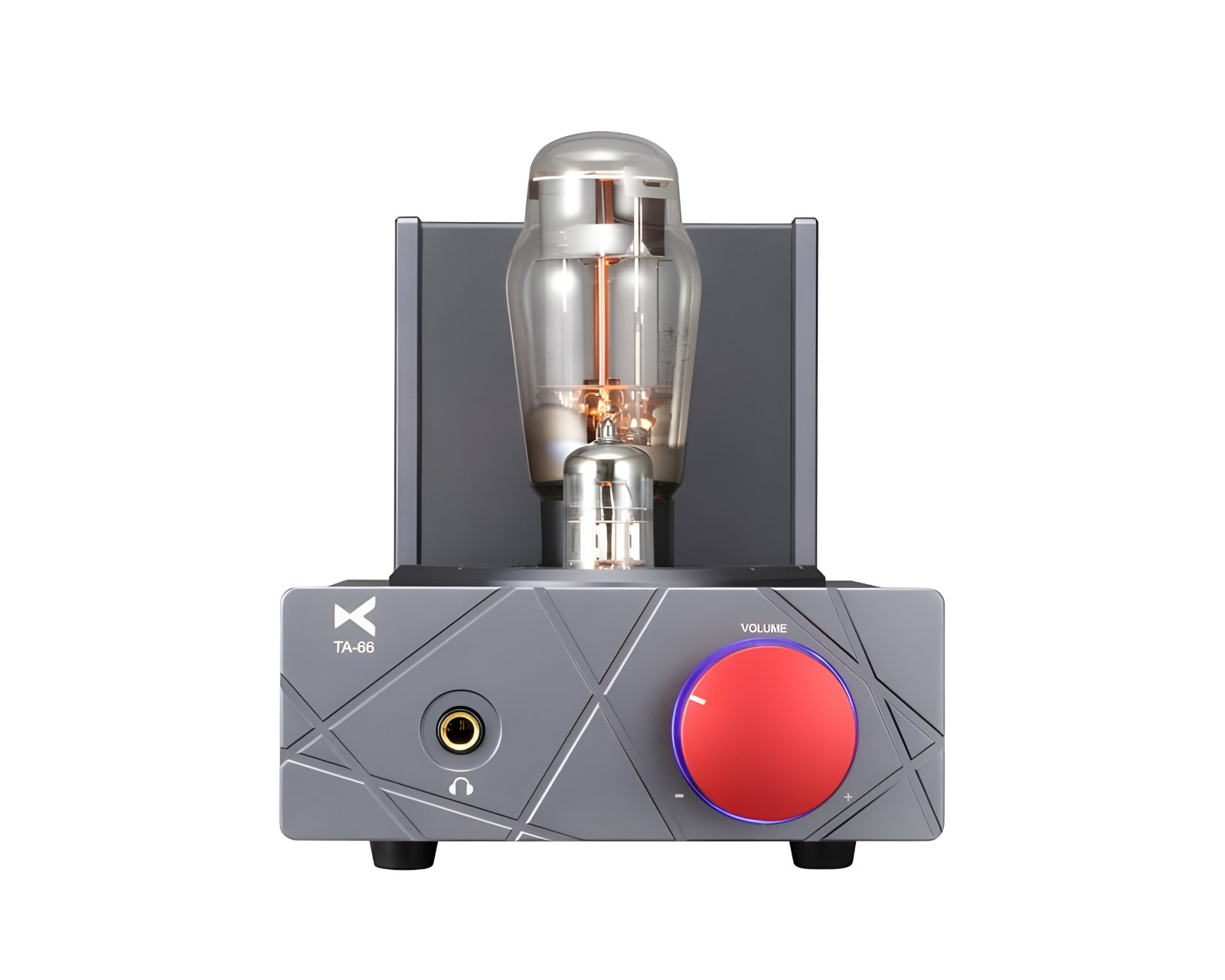

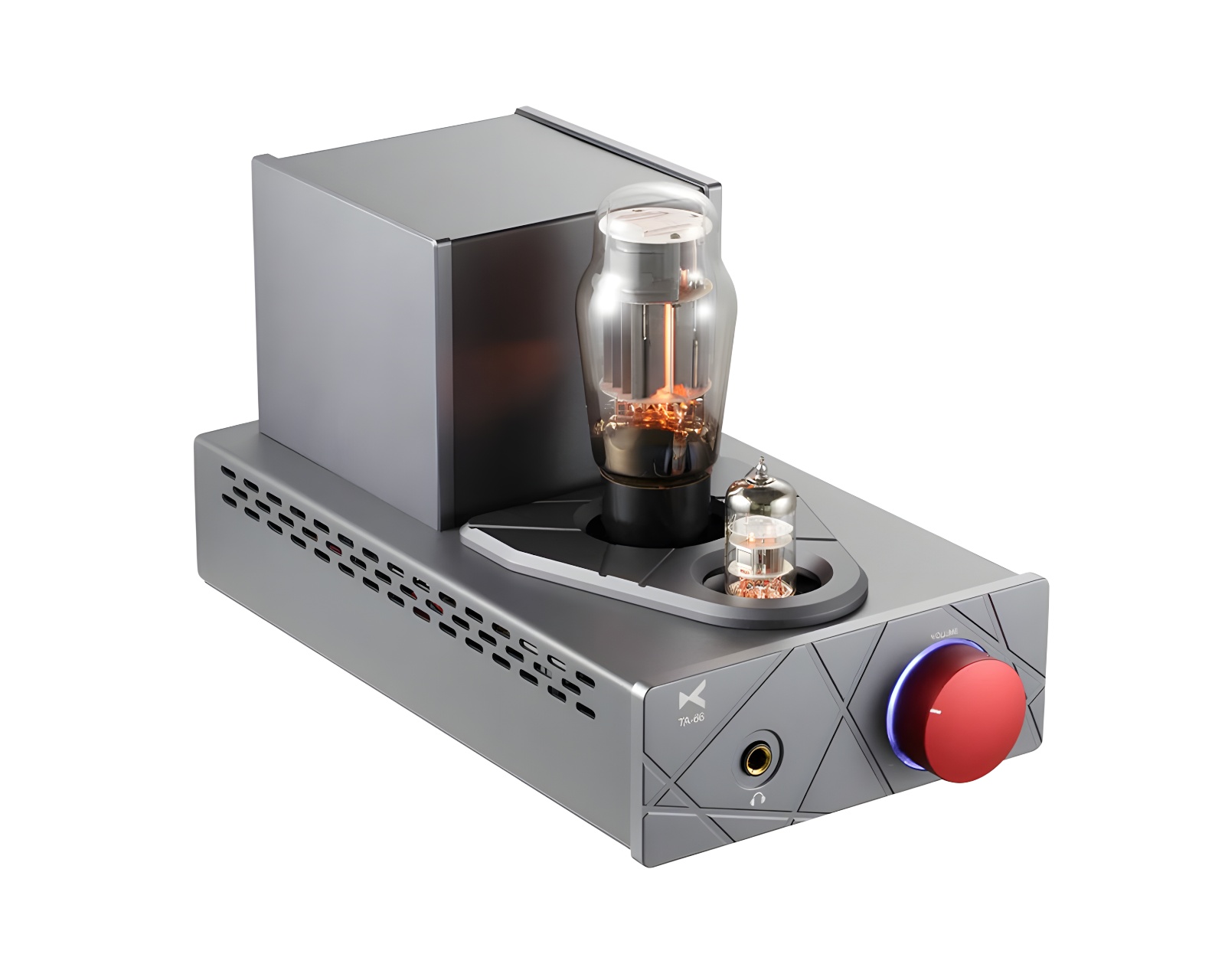

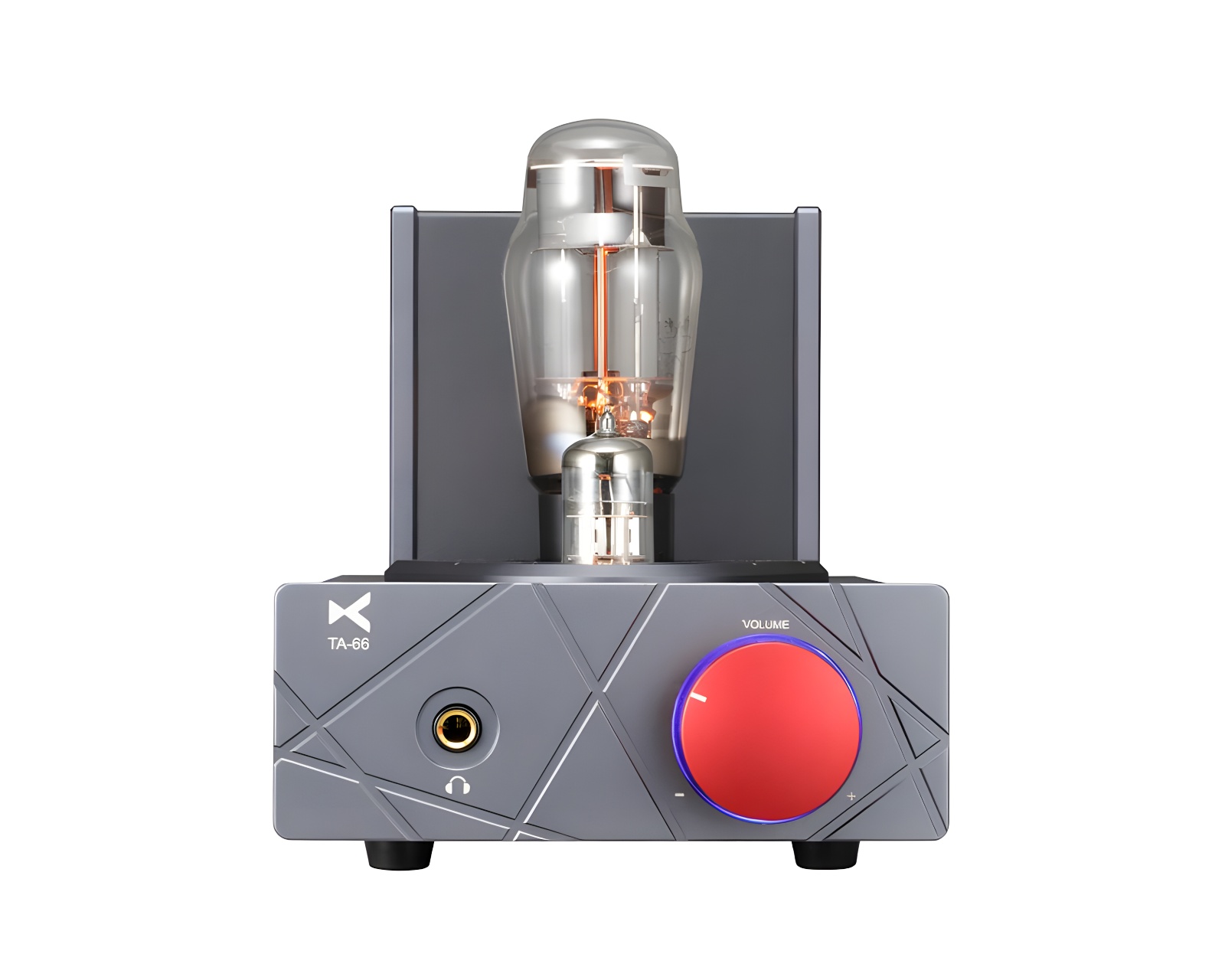

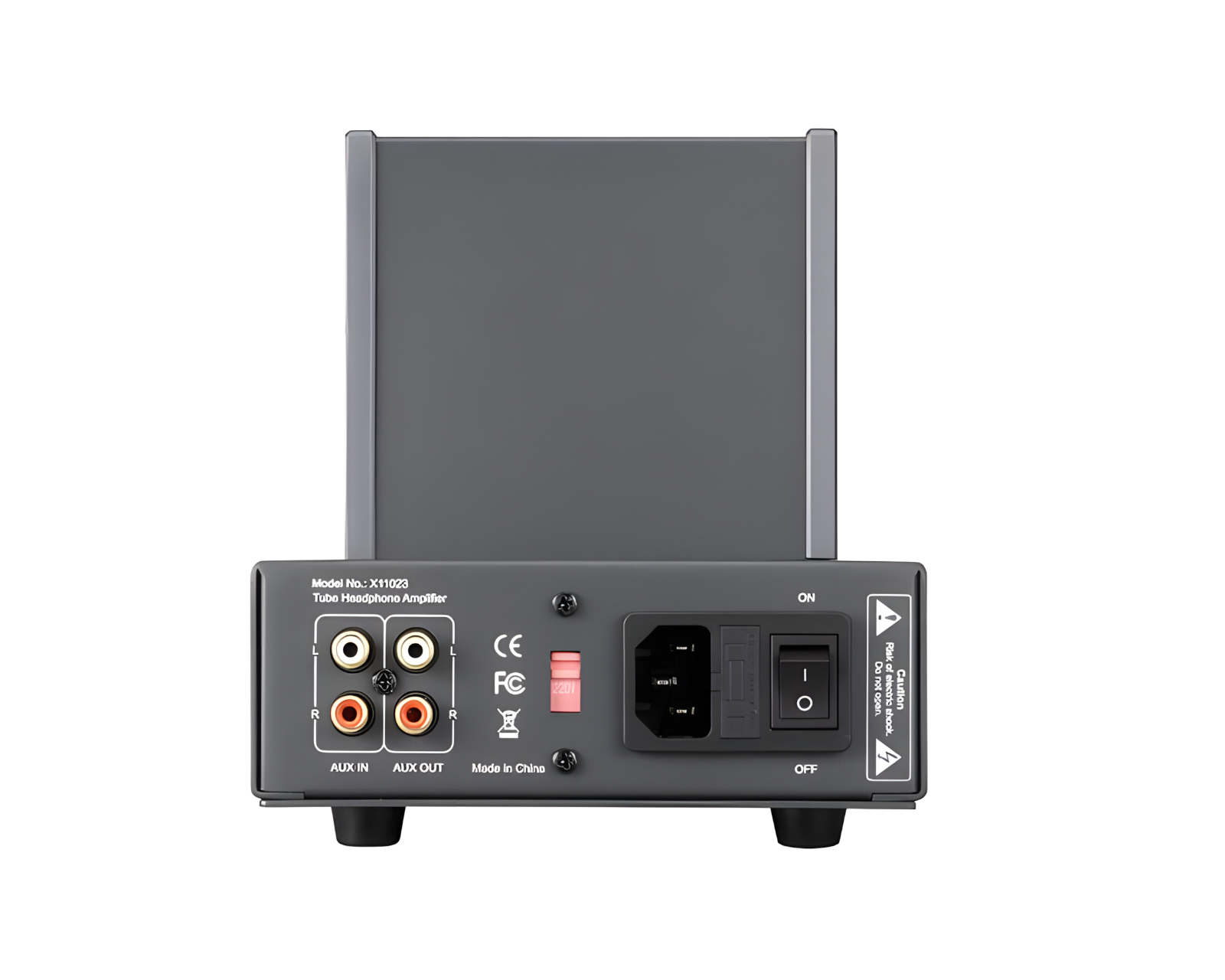

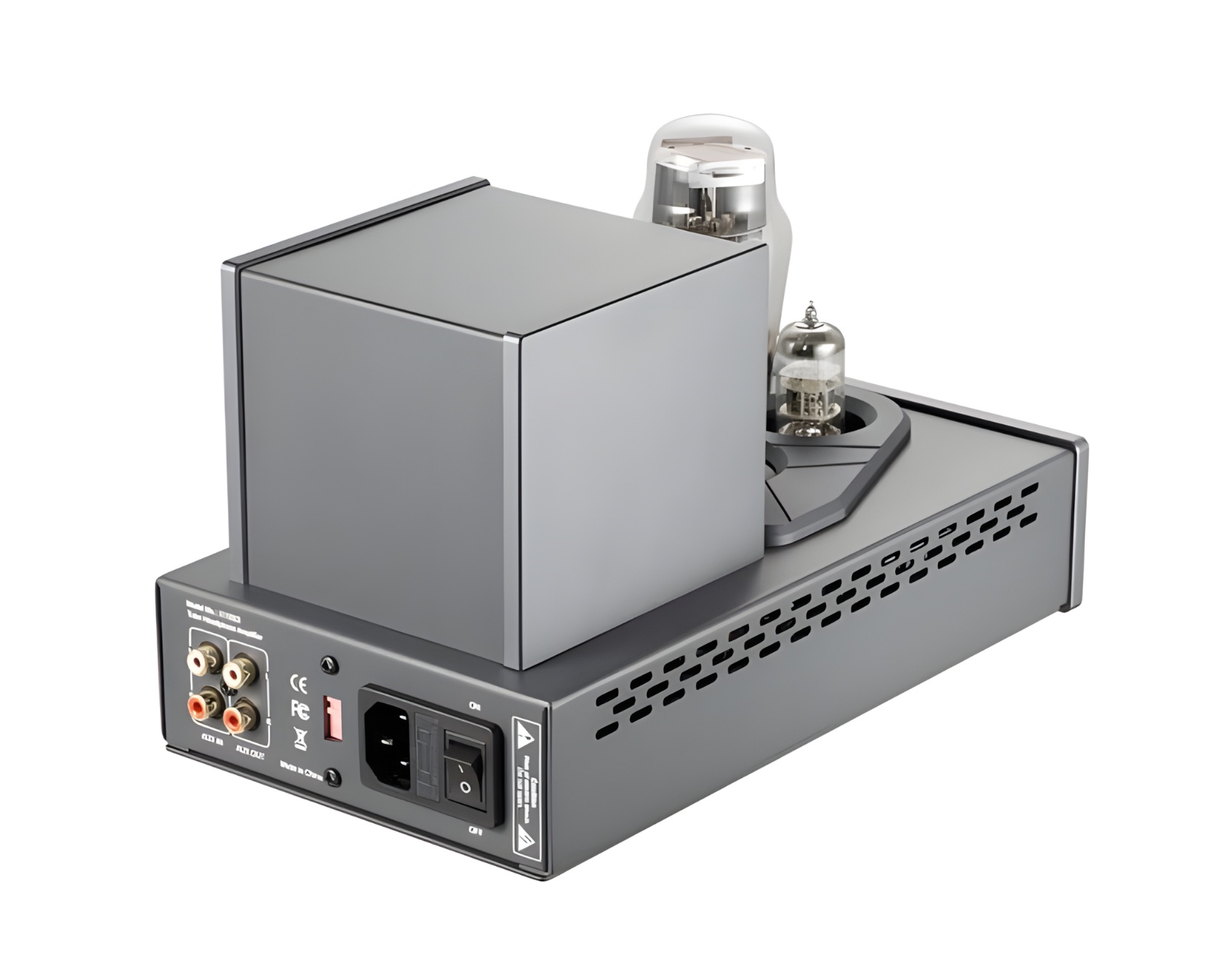

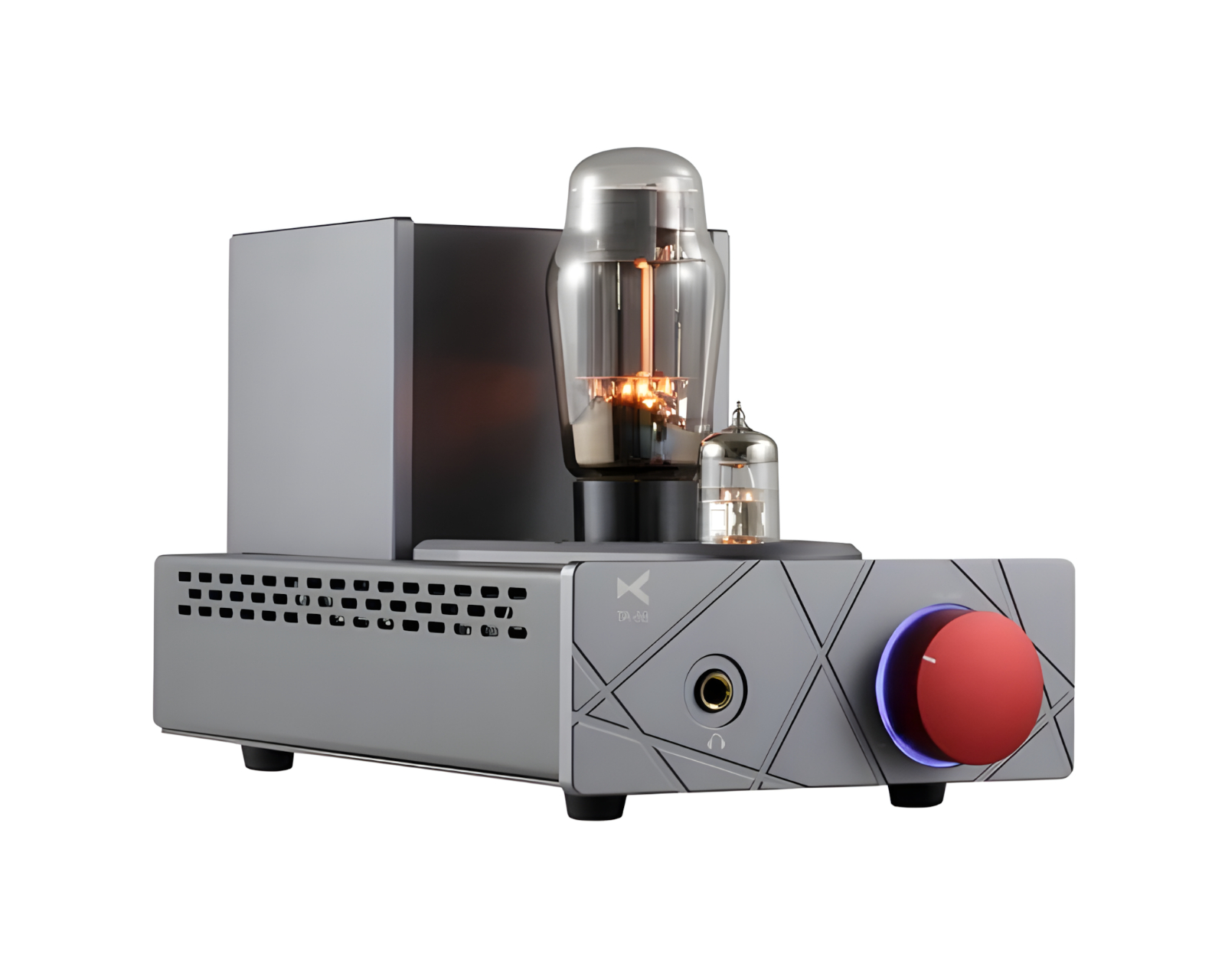

The TA-66 AMP is an OTL tube headphone amplifier from xDuoo that combines several high-quality components to deliver a refined audio experience. It uses a 6N2 tube for the amplification stage and a 6N5P tube for the buffer stage, which creates a smooth and charming sound character. The device is intended for music listening and gaming, enabling enhanced sound quality for various headphones and active speakers.

The build quality includes a solid aluminum casing with a sandblasted surface, providing both visual appeal and structural durability. A step-by-step potentiometer addresses volume imbalance and helps maintain uniform sound levels. Furthermore, point-to-point wiring and copper wires in the tube circuit are used to minimize interference and maximize sound reproduction. Equipped with professional metal-polyester film capacitors, it ensures professional audio performance.

Summary

• OTL tube headphone amplifier
• 200mW output power at 300Ω load
• Designed for audio enthusiasts and gamers
• Equipped with 6N2 and 6N5P tubes for sound processing
• Sandblasted aluminum casing for both aesthetics and durability

Product Specifications:
Power Source

• AC 110V (100–120V) / 220V (220–240V)

Output Power

• 200mW (at 300$\Omega$ load)

Frequency Range

• 10Hz–30KHz (±1dB)

Audio Performance

• Gain (Amplification): +18dB

• THD+N (Total harmonic distortion + noise): 0.08% (at 1KHz and 300$\Omega$ load)

• S/N (Signal-to-Noise Ratio): 107dB

Compatibility

• Suitable Earphone Impedance: 60$\Omega$–600$\Omega$

Other

• Size (Length * Width * Height): 29.0 * 15.3 * 18.4 cm

• Weight: 5.0 Kg

Article number:

Our article number: D36495
Manuf. article number: 8413222399456

Properties

Colour

Grey

Warranty

Manufacturer's warranty

1 year warranty
