Little Dot MKII Headphone Amplifier & Preamplifier

Product description

PC PeripheralsHeadsets & AudioExternal sound cards from Little Dot

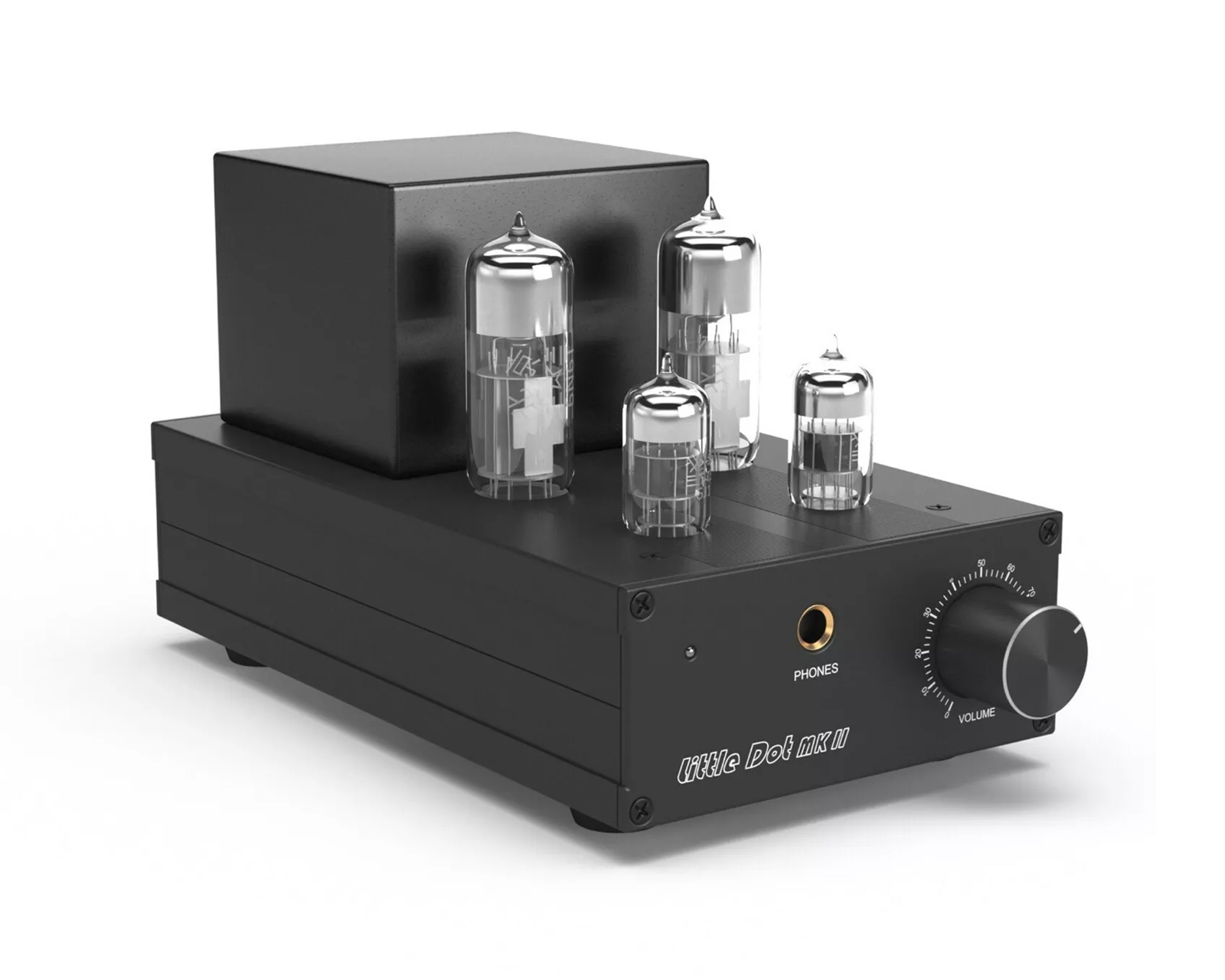

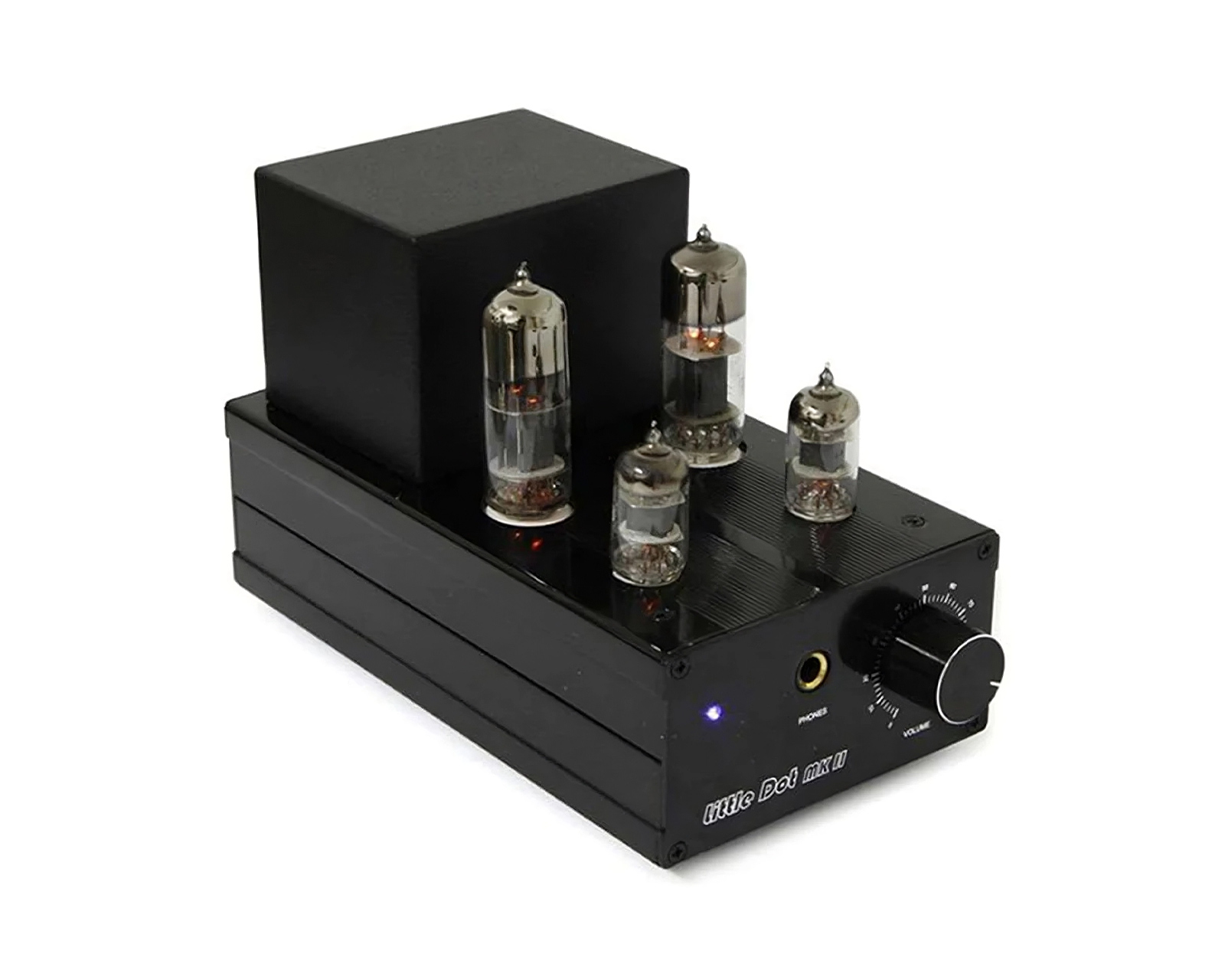

MKII Headphone Amplifier is a DAC/AMP from Little Dot that offers a high-quality audio experience for both headphones and as a preamplifier. The unit is equipped with a SEPP configuration that provides a dynamic output and detailed sound quality. It is intended for gamers and audio enthusiasts who are interested in exploring the world of tube amplifiers.

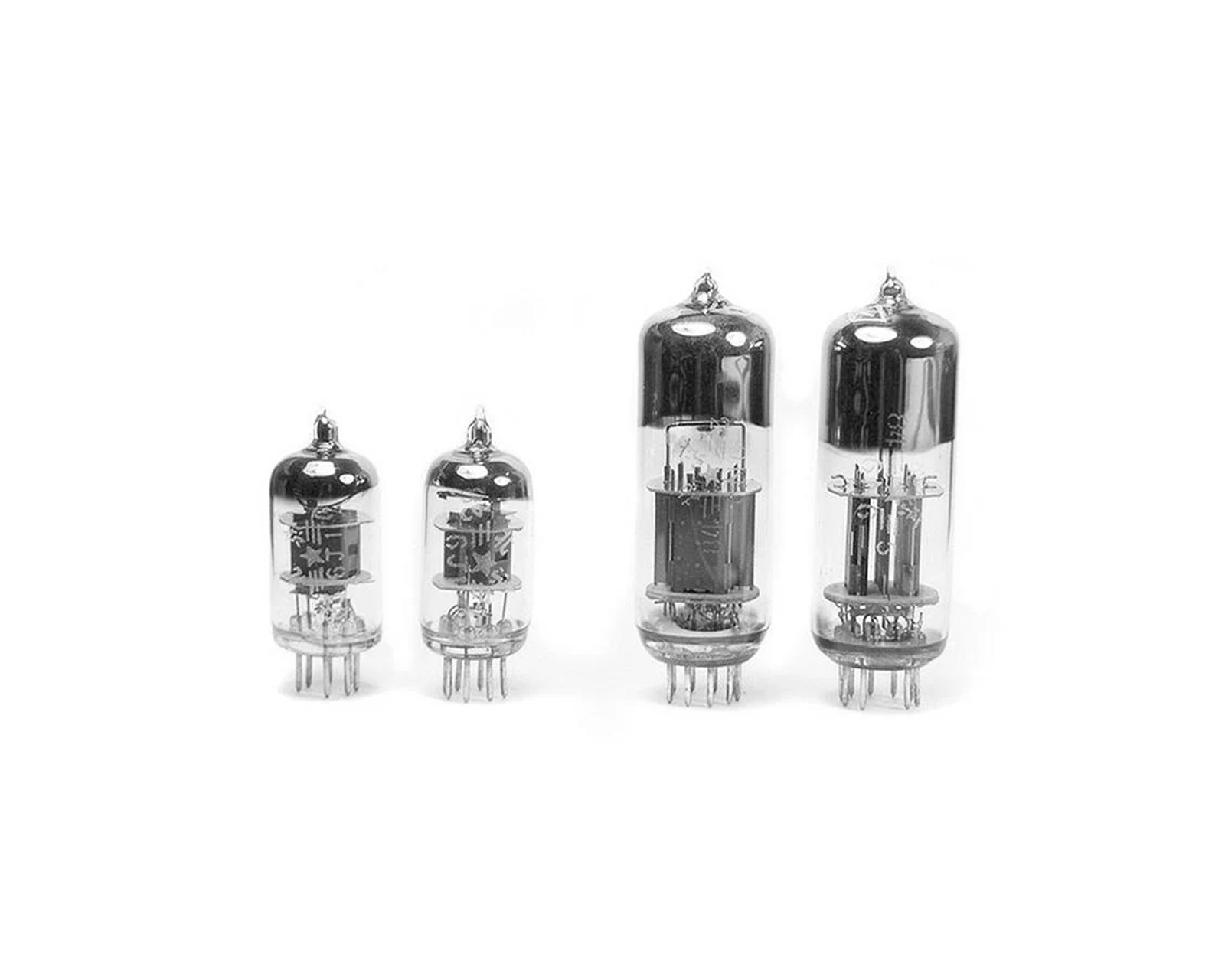

MKII is built with carefully selected components, such as the Dawn 6J1 tube in the front, which is known for its clear tone and ability to highlight human and female voices. The rear tube, 6N6, has high output and low distortion. The output circuitry is also improved to reduce output impedance and increase load capacity. MKII can be used both as a headphone amplifier and as a preamplifier to optimize sound quality in speaker systems.

Summary

• SEPP configuration for optimal sound quality
• Output impedance 32Ω-600Ω
• Intended for gamers and audio enthusiasts
• Amplifies both headphones and speaker systems
• Aluminum body with high finish

Specifications:

• Driver Tube: 6JI
• Power Tube: 6N6

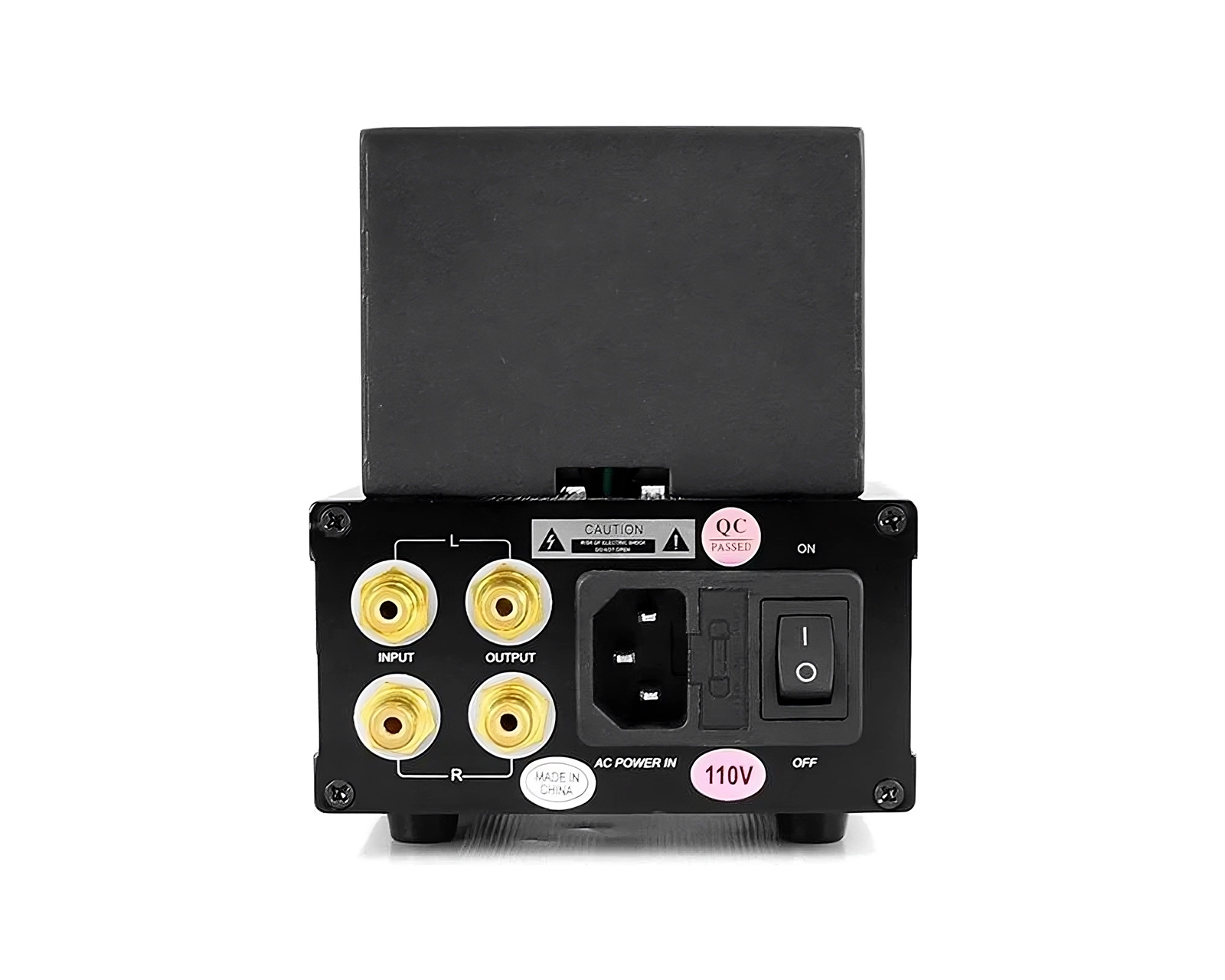

• Input: RCA
• Output:
  A. 6.35 Headphone socket (for headphone amplifier)
  B. RCA (used for pre-amplification) 20HZ-50KHZ (300Ω-1db)
• Frequency response: 20HZ - 50KHz (-1dB)
• THD+N: 0.1% (50mW into 300 ohms)
• Output Power:
  A. 300 mw (600/300Ω)
  B. 200 mw (120Ω)
  C. 100 mw (32Ω)
• Output impedance:
  32Ω-600Ω (headphone amplification part)
  10KΩ (pre-amplification part)
• Dimensions: 210 *110 * 130 mm
• Weight: 2500 g
• Accessories:
  Three-core power cord*1
  RCA-RCA signal line*1 (optional 3.5-RCA)
  3.5-6.35 headphone adapter *1

Article number:

Our article number: 36761
Manuf. article number: MKII

Brand

Properties

Colour

Black

Warranty

Manufacturer's warranty

1 year warranty
