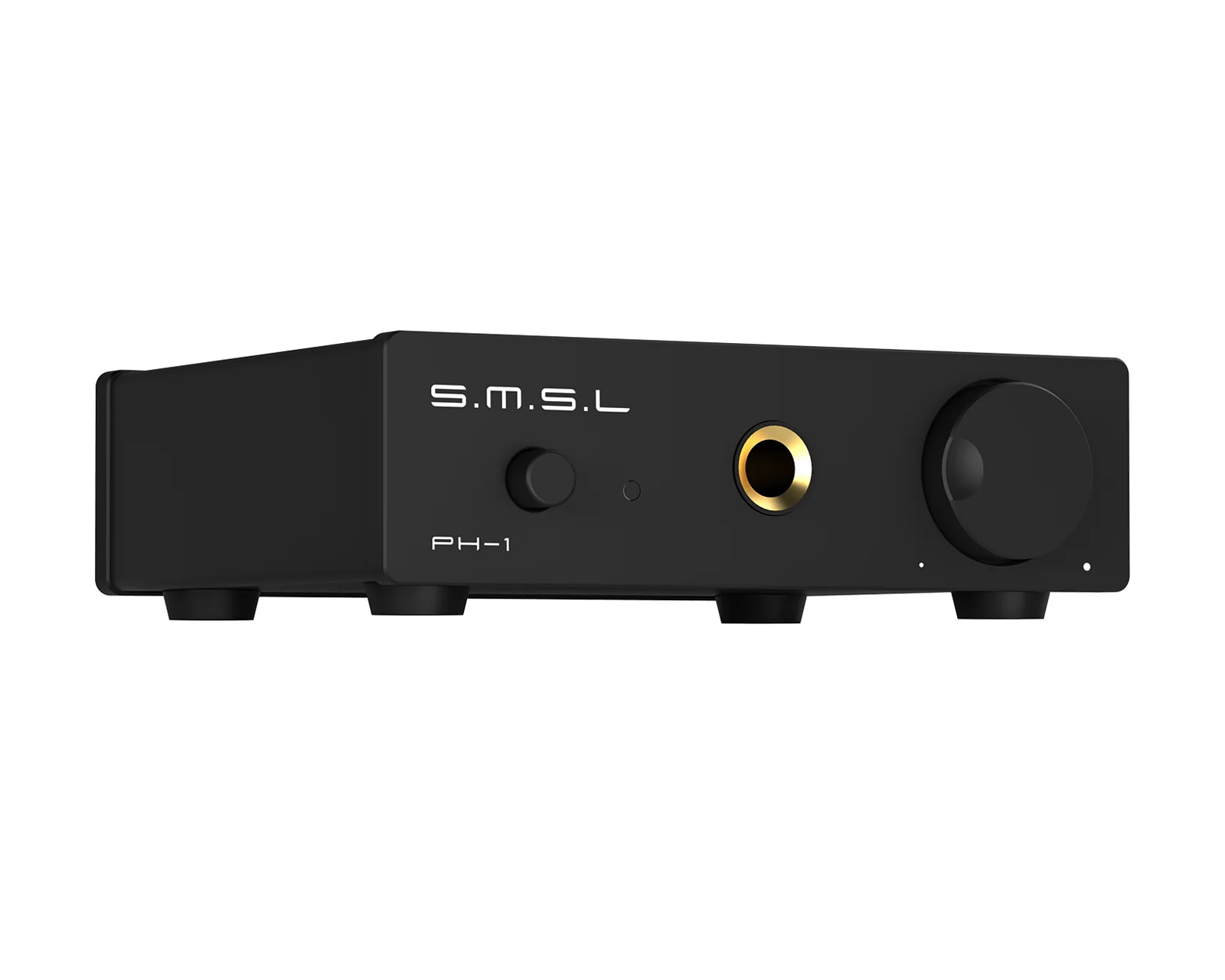

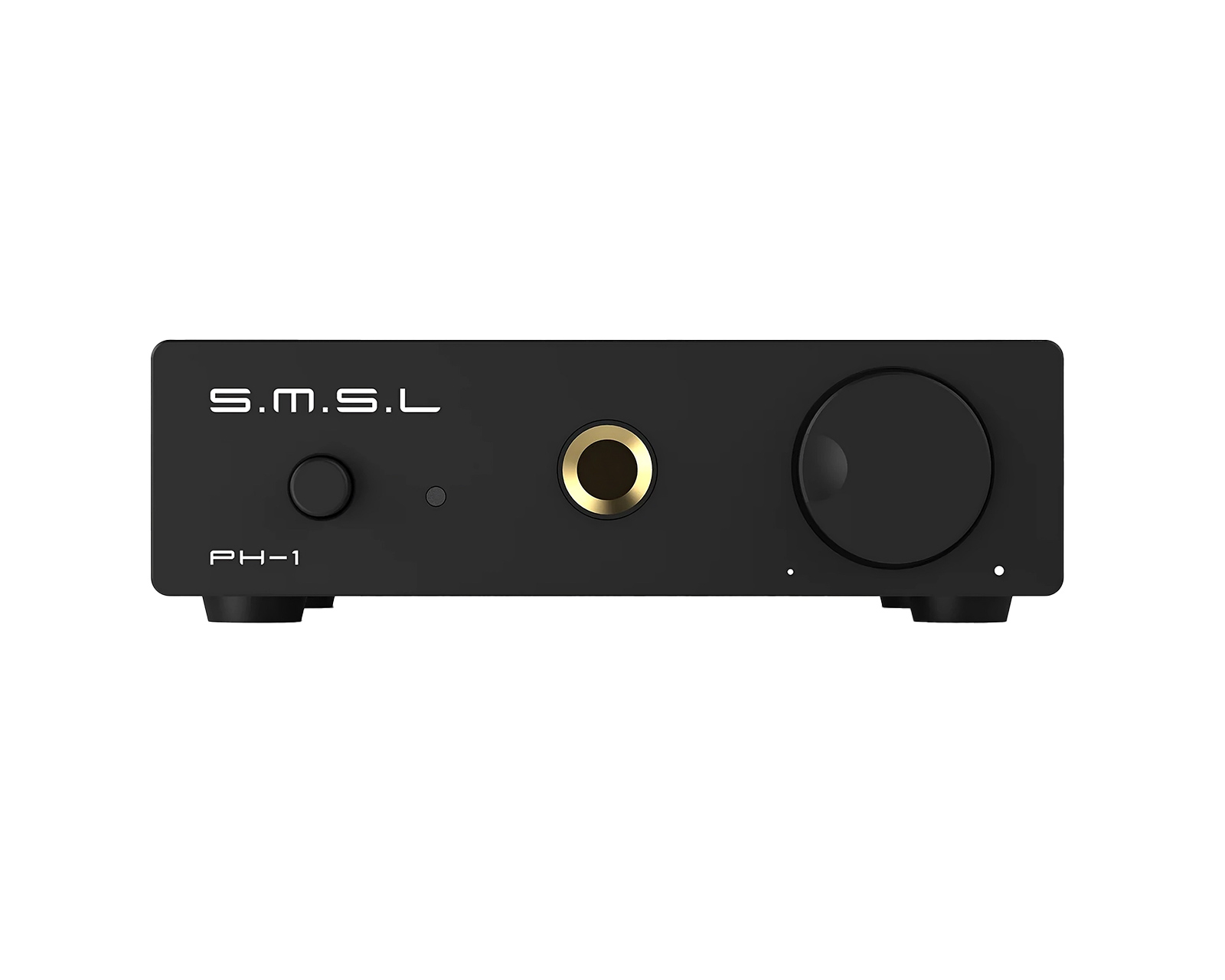

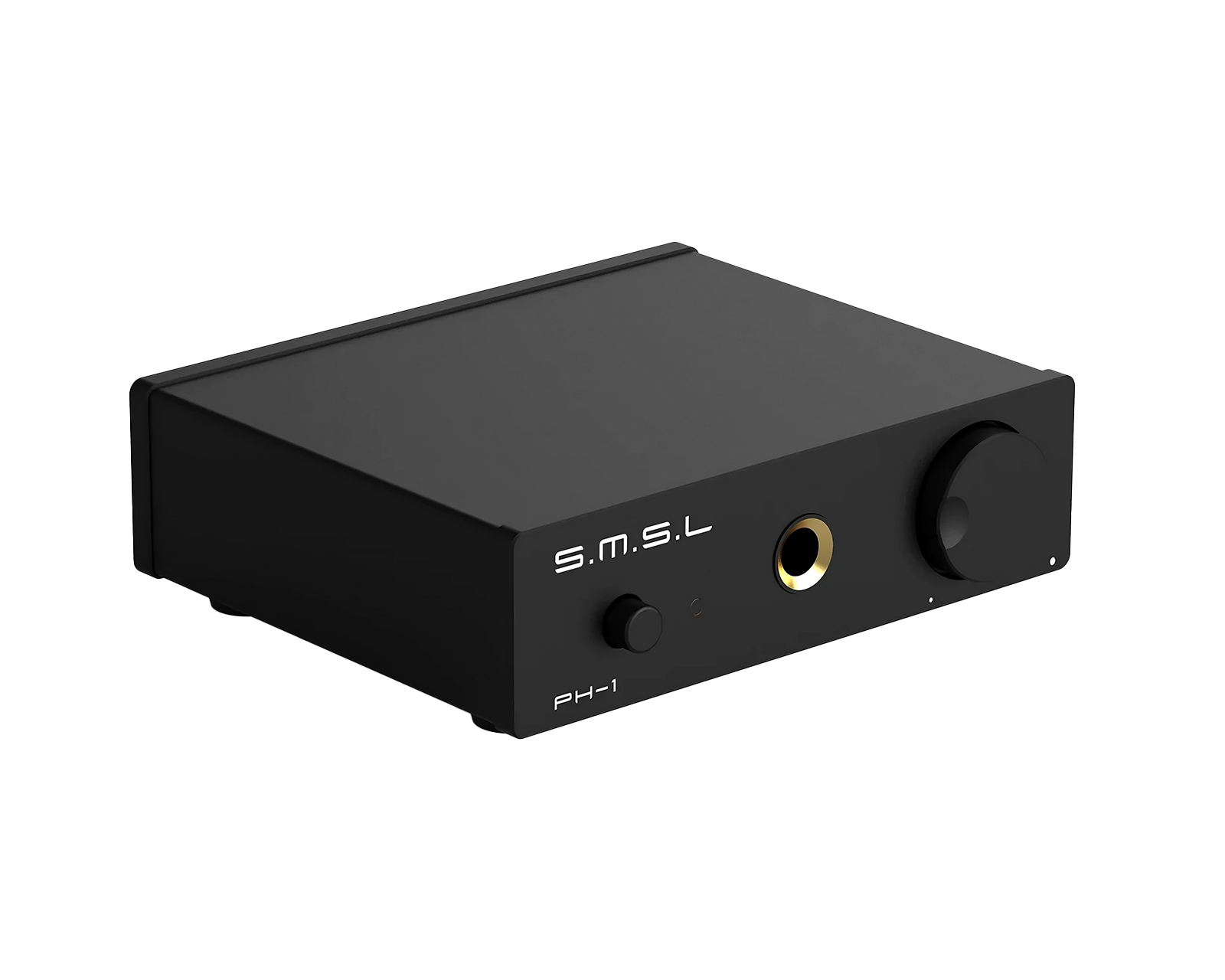

SMSL PH-1 Phono Preamplifier MM

Product description

PC PeripheralsHeadsets & AudioExternal sound cards from SMSL

PH-1 is an MM-only phono preamplifier from SMSL designed to offer a rich and dynamic vinyl listening experience in a compact form. It has a fixed gain of 46dB, providing an output of approximately 1Vrms. This makes it suitable for modern amplifiers and delivers a fuller sound without overloading subsequent stages.

PH-1 is specifically designed for MM cartridges and lacks complex MC circuits, improving circuit performance by 50% and ensuring high sound quality at low costs. The chassis is made with high-precision CNC machining, providing mechanical stability and exceptional EMI resistance. The built-in headphone amplifier with a 6.35mm jack is ideal for use when speakers are not practical.

Summary

• MM-only design
• 46dB fixed gain
• Optimal for vinyl enthusiasts
• High-precision CNC chassis
• Built-in headphone amplifier

Specifications:

• Model: SMSL PH-1
• Gain: 46dB
• THD+N: 0.008%
• SNR: 84dB
• Channel Separation: -77dB @ 1kHz
• Output Power: 90mW ×2 @ 32Ω

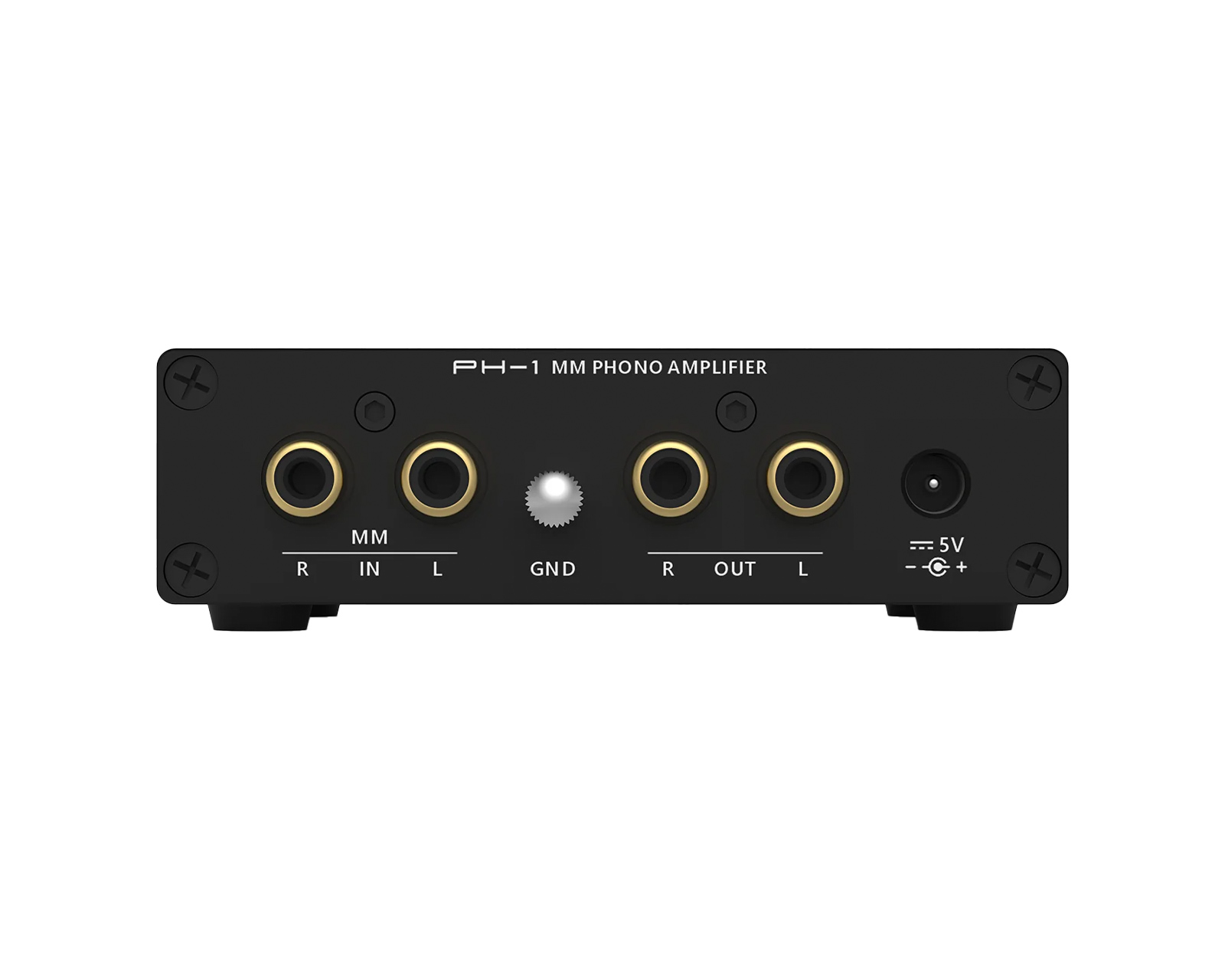

• Inputs: RCA L/R, GND
• Outputs: RCA L/R, 6.35mm Headphone
• Power: DC 5V 500mA
• Dimensions: 94 × 30 × 96 mm
• Weight: 205g

Article number:

Our article number: 36762
Manuf. article number: PH-1

Brand

Properties

Colour

Black

Warranty

Manufacturer's warranty

1 year warranty
