Lian Li A3 mATX Chassi - Black

Product description

News from Lian Li

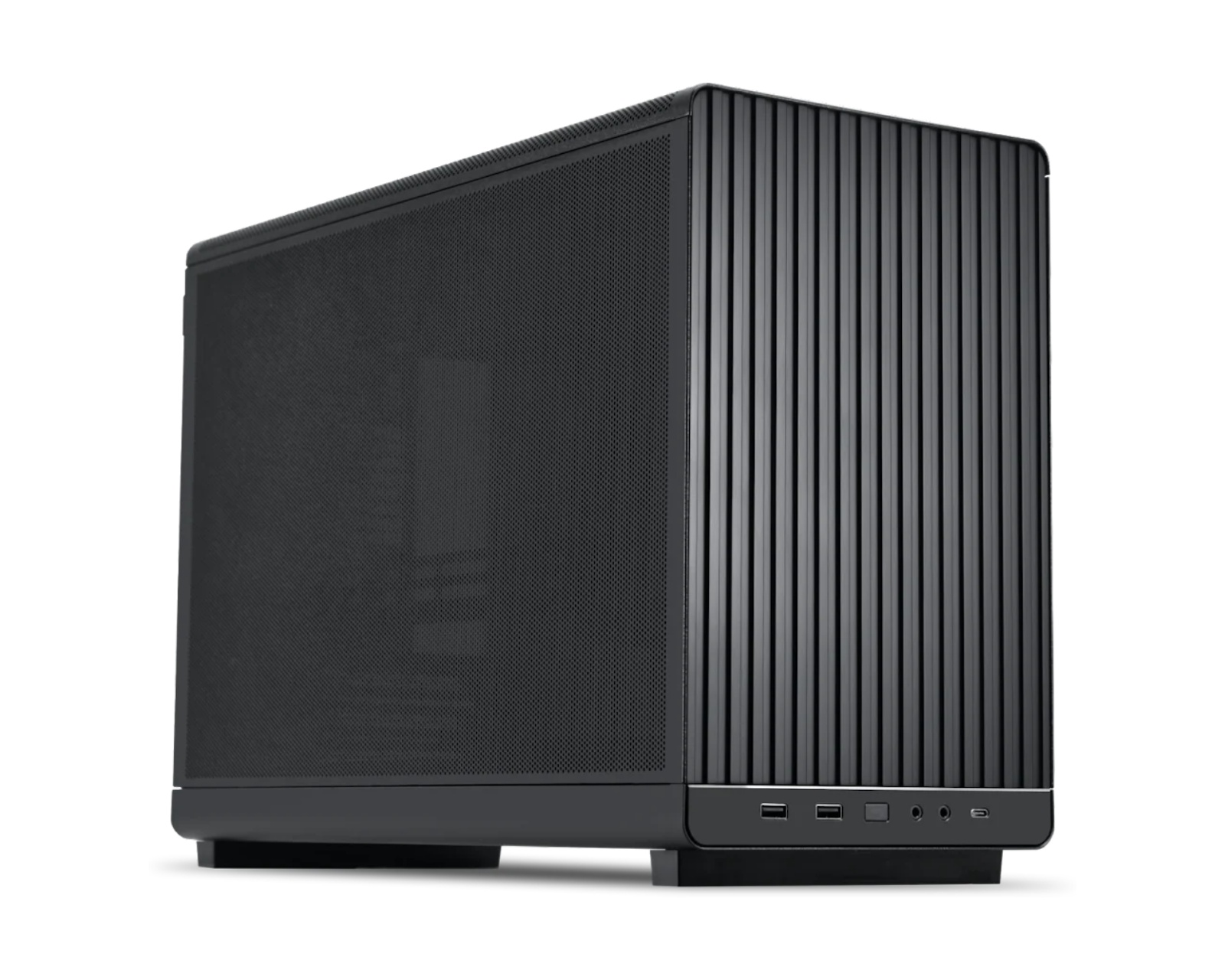

A3 mATX is a Micro-ATX chassis from Lian Li in collaboration with DAN Cases. It features mesh panels on the sides and top for excellent airflow and flexibility for customization. The chassis is equipped with cooling options, including space for 360 mm radiators, making it suitable for powerful components. Designed for either Micro-ATX or Mini-ITX motherboards, this chassis is a compact solution for gamers and PC builders.

A3 mATX is constructed with high-quality materials and offers a build quality that supports a capacity of around 26 liters. The chassis can accommodate up to ten 120 mm fans, which can be placed in various configurations, as well as support 140 mm fans on the top panel. The maximum height for CPU coolers is 165 mm, allowing for the installation of powerful air coolers. When it comes to water cooling, there is room for radiators on both the top and sides, as well as a 240 mm radiator at the bottom.

Summary

• Micro-ATX chassis
• Support for up to 10 fans
• For gamers and PC builders
• Flexible cooling with space for 360 mm radiators
• Can accommodate both Micro-ATX and Mini-ITX motherboards

Article number:

Our article number: 36547
Manuf. article number: A3- mATX Black

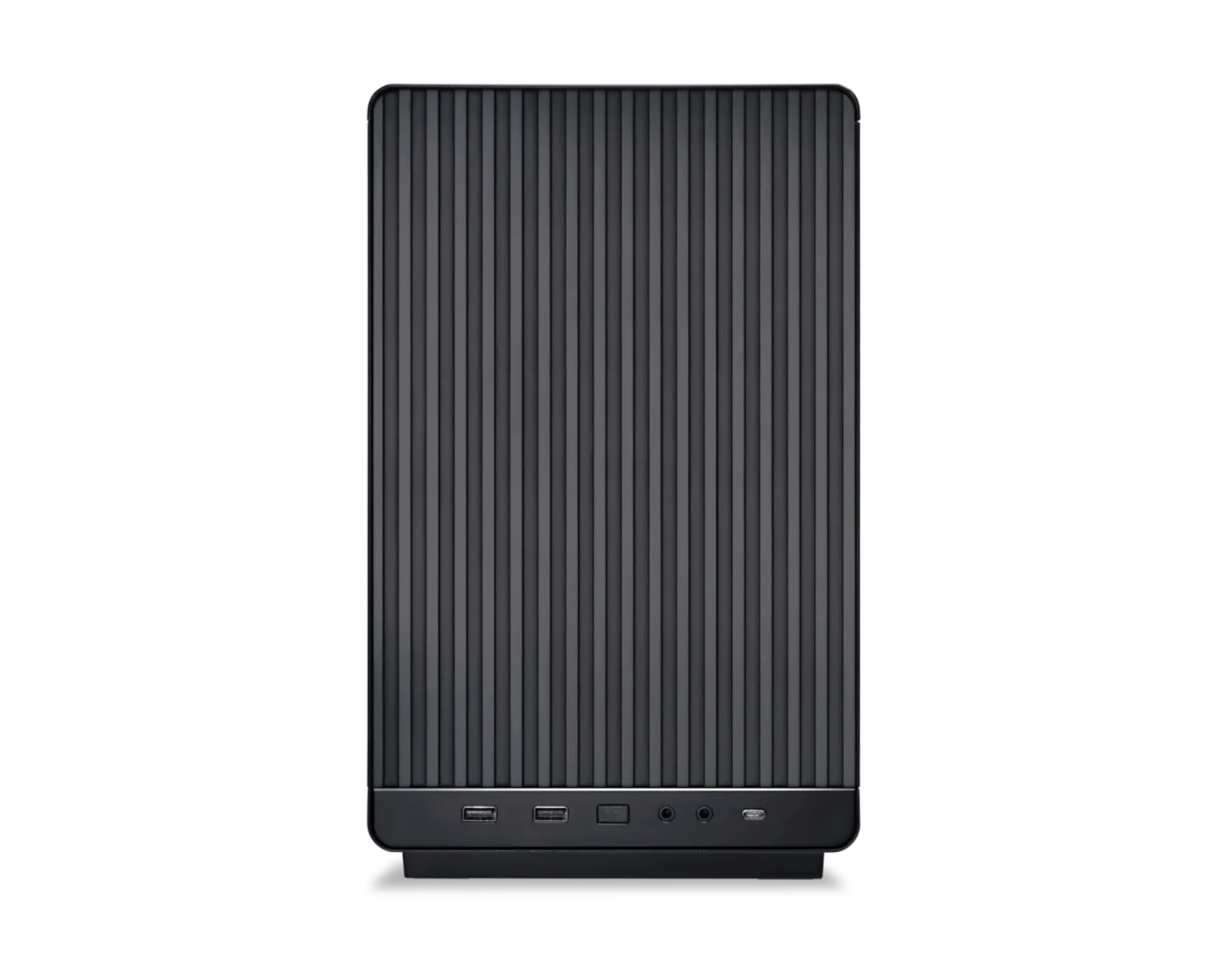

Front panel

Audio output (3,5mm)	Yes
USB 3.0/3.1 Gen 1	2 pcs
USB 3.1 Gen2 Type-C	1 pcs

Hard drive

2.5'' (standard)	2 pcs
2.5''/3.5'' (standard)	1 pcs

Performance

Rear fan spots	1 pcs 120mm
Fan spots top	2 pcs 140mm, 3 pcs 120mm
Fan spots side	2 pcs 140mm, 3 st 120mm

Properties

Type of side panel	Solid
Form factor	mATX, Mini-ITX
Side panel	Mesh
Motherboard support	mATX, Mini-ITX
Backlight	No
Colour	Black
Expansion spots	4 pcs

Size & weight

Max height CPU-cooler	165 mm
Max length graphics card	415 mm
Max length PSU	220 mm
Width	194 mm
Depth	321.5 mm
Height	443 mm
Weight	500 g

Warranty

Manufacturer's warranty

2 year warranty

Water cooling

Radiator top (max)

360/280/240 mm
