Product description

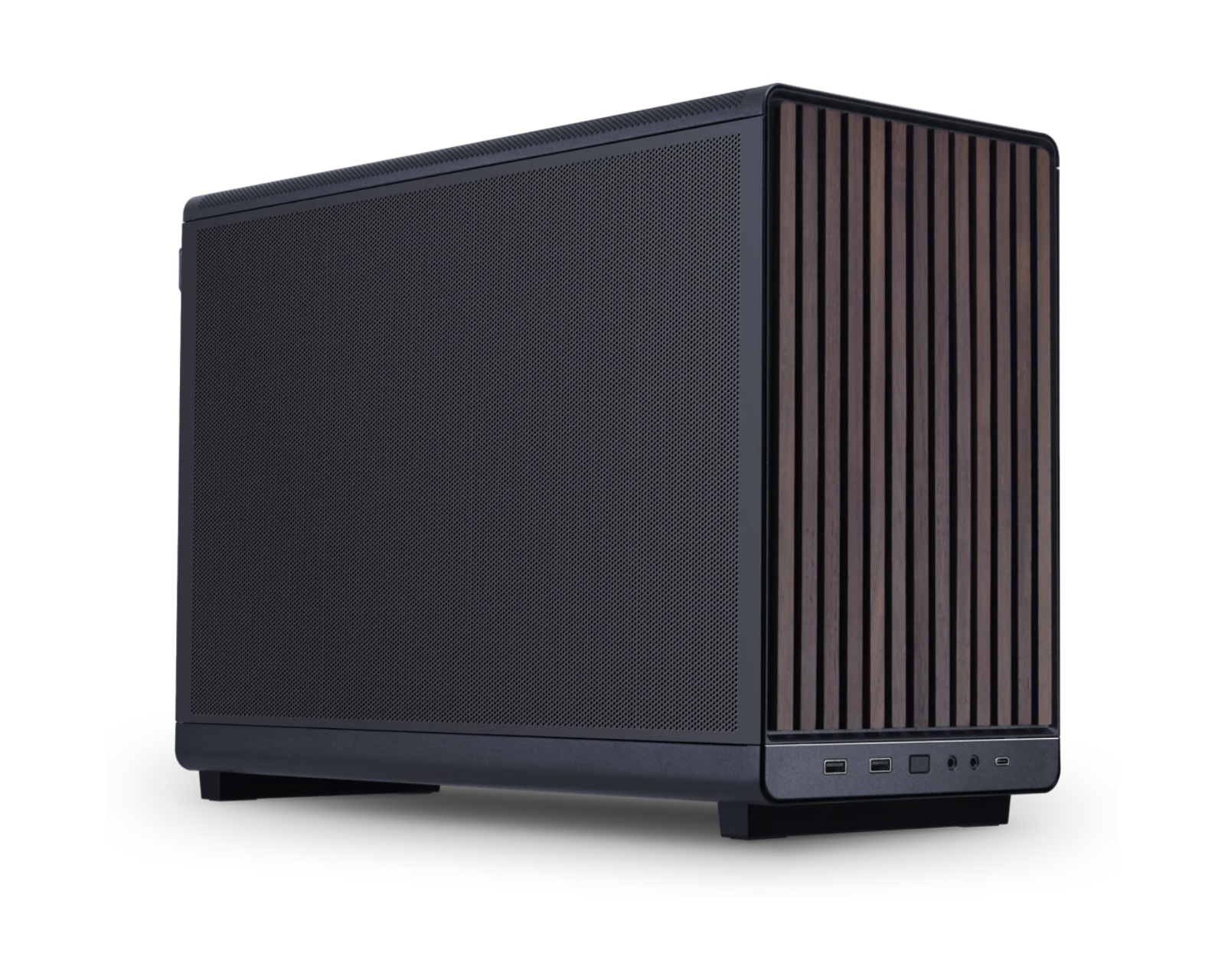

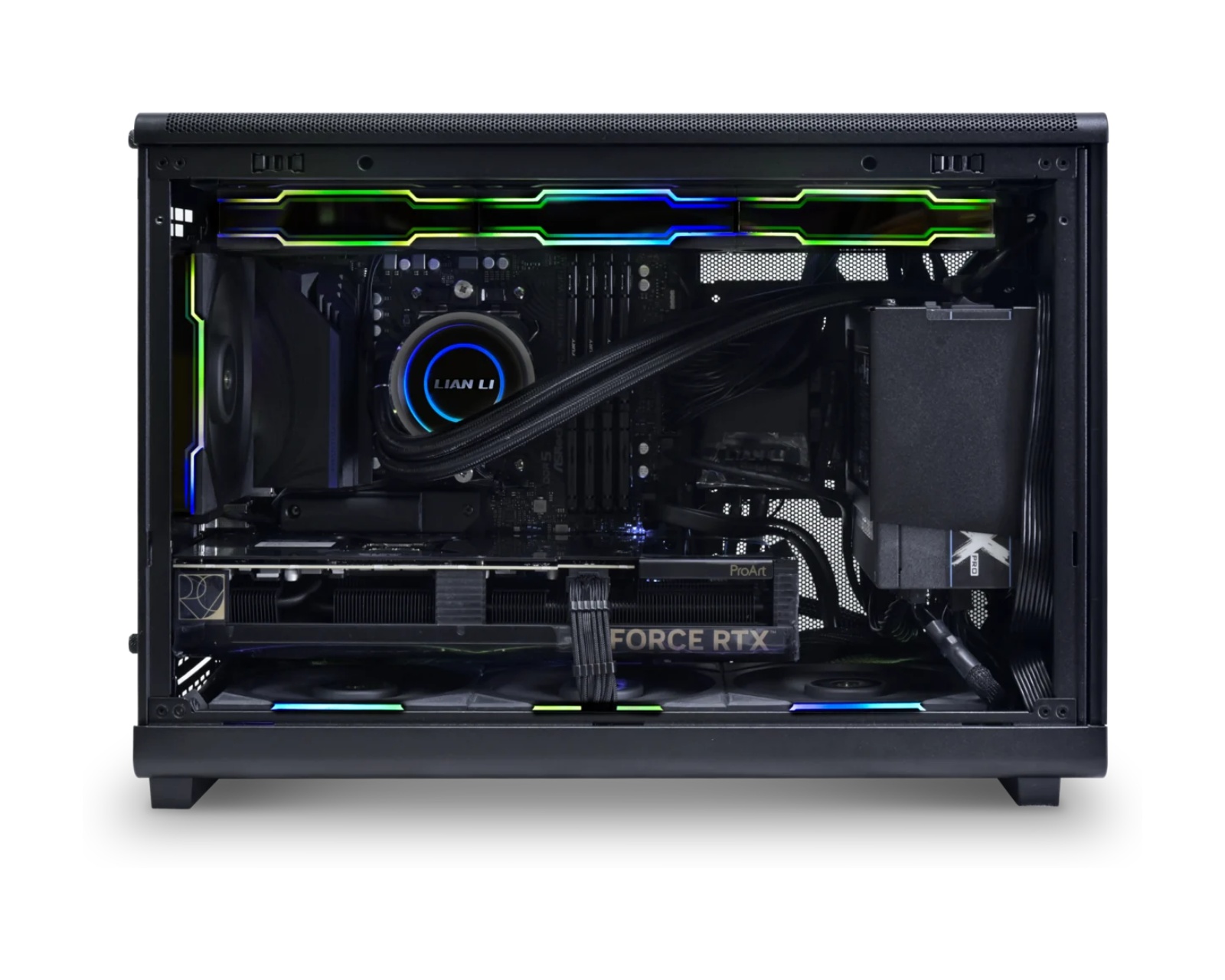

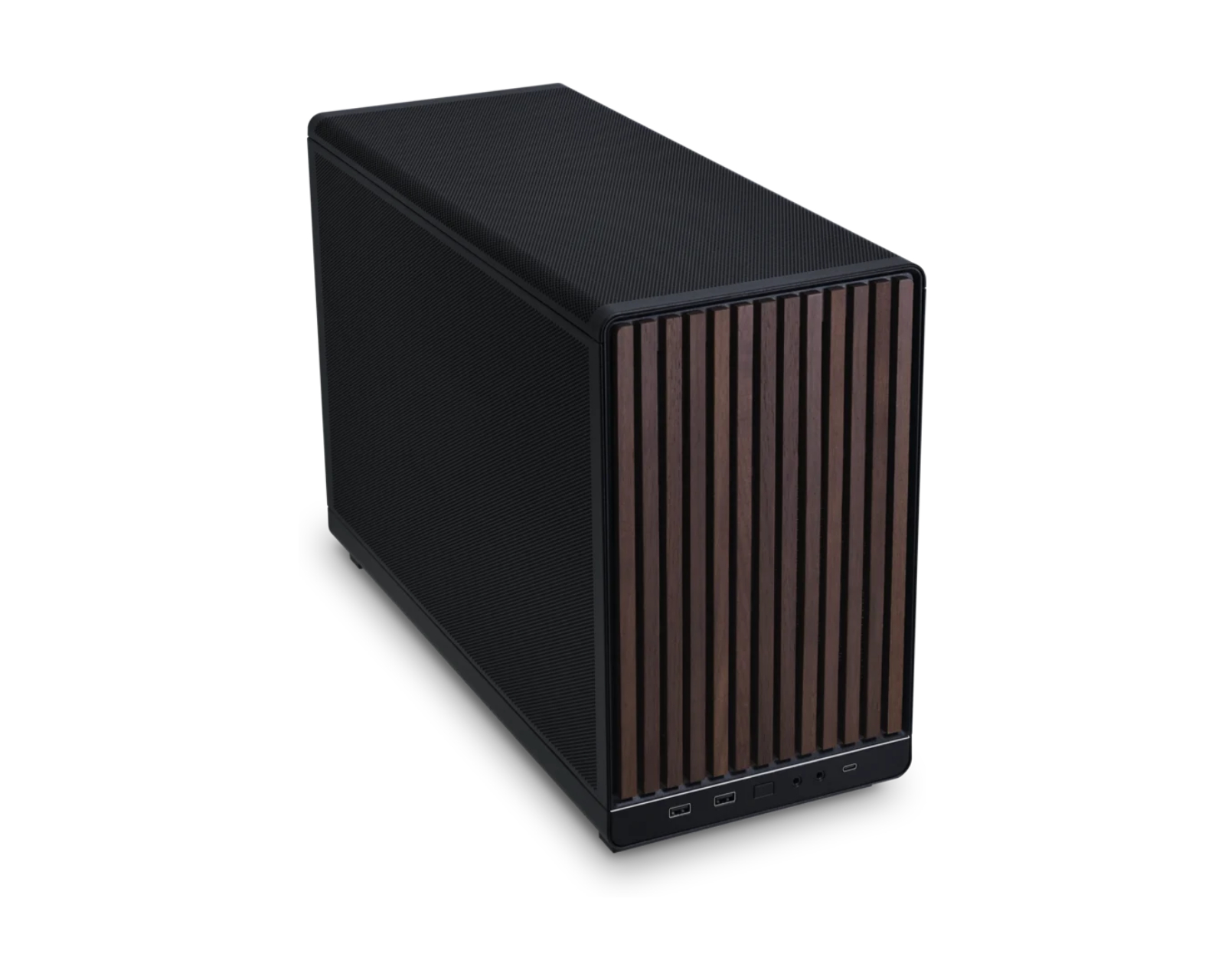

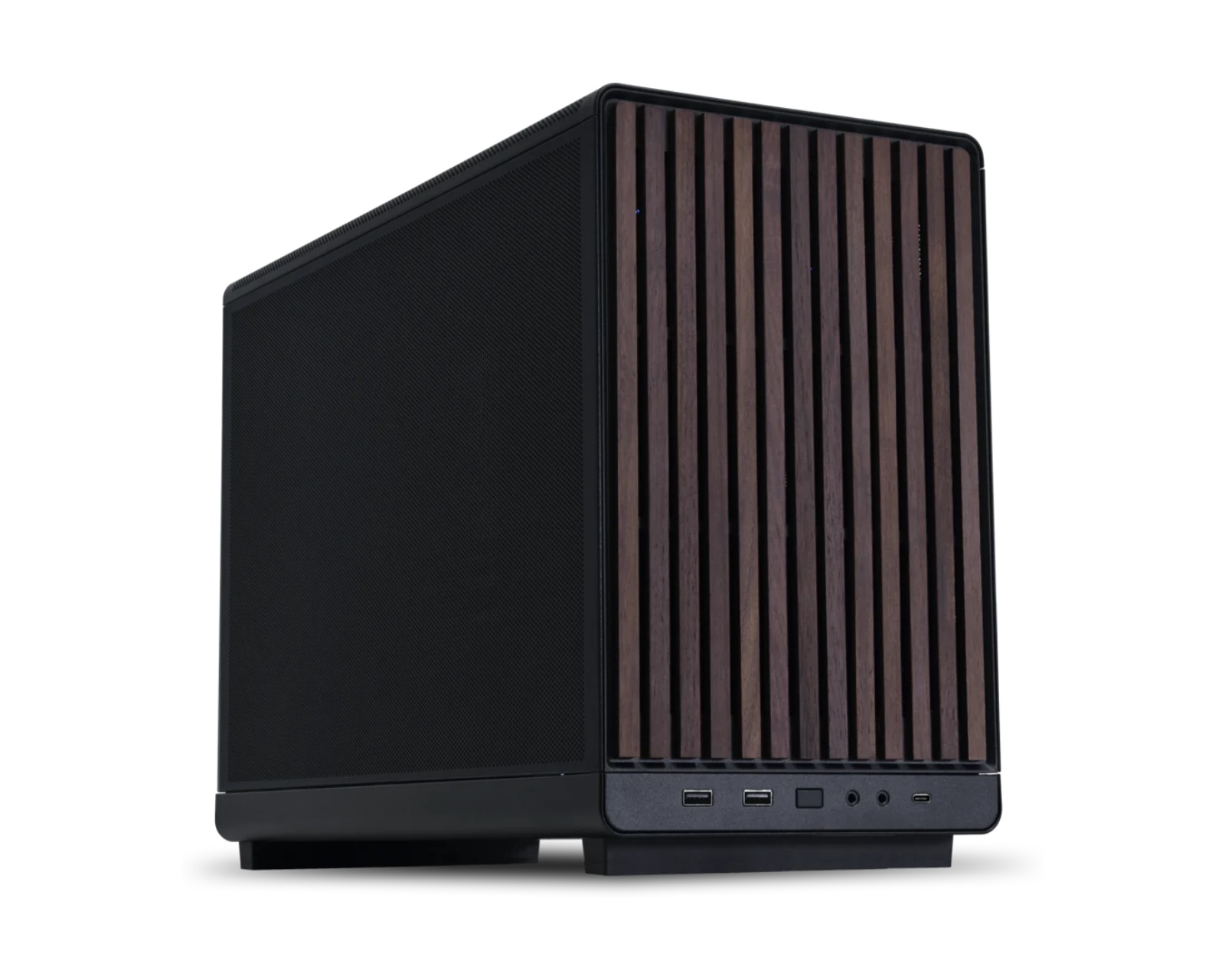

A3 mATX is a chassis from Lian Li that combines a compact design with the ability to accommodate large components. This M-ATX mesh chassis with a volume of 26.3 liters offers support for both M-ATX and ITX motherboards, as well as a GPU of up to 415 mm. With its streamlined appearance and side and top panels made of steel mesh, the A3 mATX is designed for users who want to build a powerful and compact PC.The chassis construction includes a movable PSU bracket that allows the user to customize the placement of the power supply for optimal space. The A3 mATX supports the installation of up to 360 mm radiators and up to 10 pieces of 120 mm fans for effective cooling. This provides access to good airflow and thermal management. Additionally, the chassis is compatible with ATX, SFX, and SFX-L power supplies and can be mounted on both the side and front. The chassis is manufactured in collaboration with DAN Cases, which attests to its thoughtful design.
Summary
- Compact chassis with large capacity
- Accepts M-ATX and ITX motherboards
- Designed for gamers and PC builders
- Space for effective cooling with up to 10 fans
- Movable PSU bracket for customized installation
Article number:
Our article number: 36538
Manuf. article number: A3-mATX-WD Black
Brand
Specifications

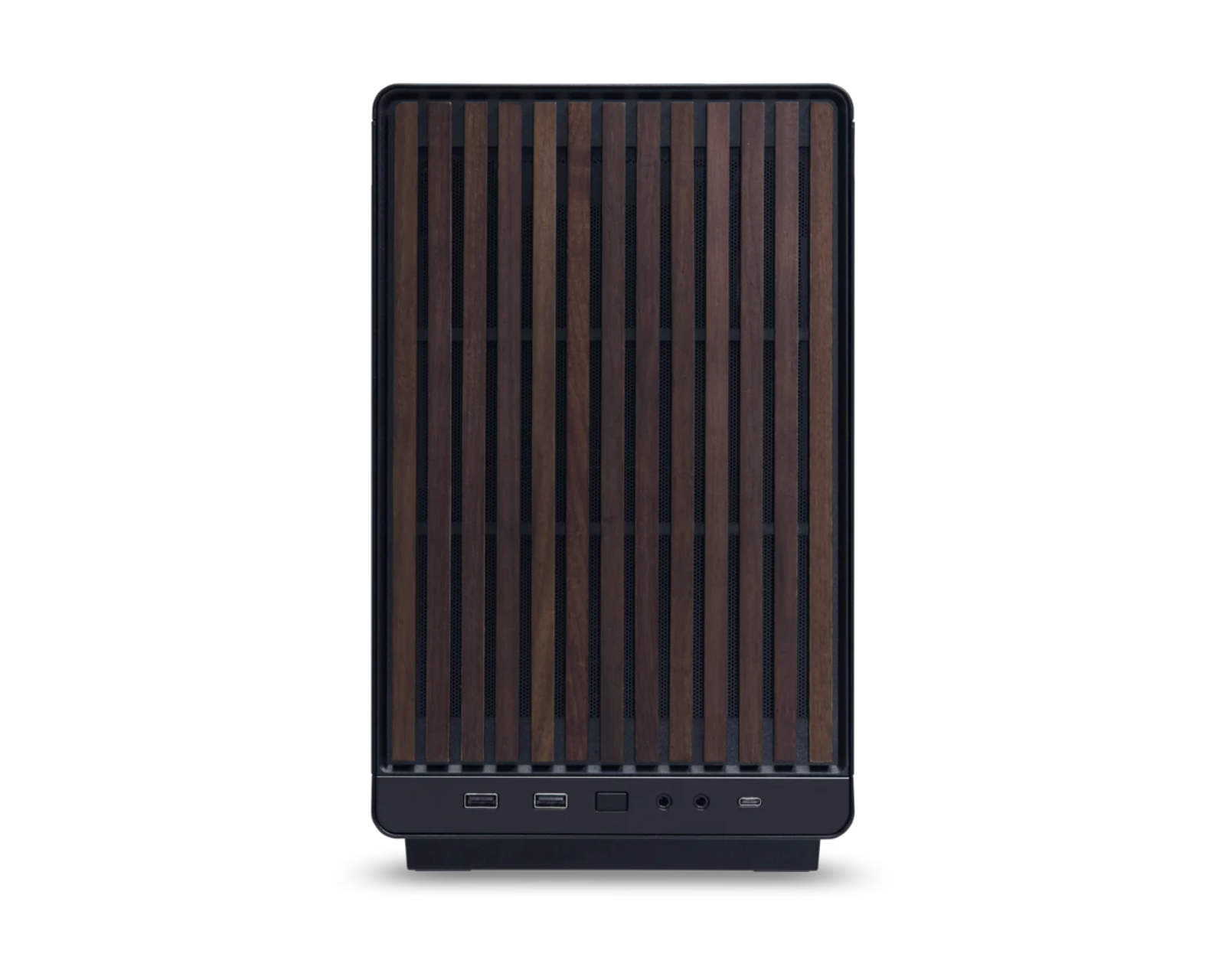

Front panel
| Audio output (3,5mm) | Yes |
| Microphone input (3,5mm) | Yes |
| USB 3.0/3.1 Gen 1 | 2 pcs |
| USB 3.1 Gen2 Type-C | 1 pcs |
Hard drive
| 2.5'' (standard) | 1 pcs |
| 2.5''/3.5'' (standard) | 2 pcs |
Performance
| Included fans | 2 pcs 140mm |
| Front fan spots | 3 pcs 120mm |
| Rear fan spots | 1 pcs 120mm |
| Fan spots top | 3 pcs 120mm |
| Fan spots side | 2 pcs 140mm |
Properties
| Type of side panel | Solid |
| Form factor | mATX, Mini-ITX |
| Side panel | Mesh |
| Motherboard support | mATX, Mini-ITX |
| Backlight | No |
| Colour | Black |
| Dust filter | Yes |
| Expansion spots | 4 pcs |
Size & weight
| Max height CPU-cooler | 165 mm |
| Max length graphics card | 415 mm |
| Max length PSU | 220 mm |
| Width | 194 mm |
| Depth | 443 mm |
| Height | 321.5 mm |
| Weight | 500 g |
Warranty
| Manufacturer's warranty | 2 year warranty |
Water cooling
| Front radiator (max) | 360/280/240 mm |
| Radiator top (max) | 360/280/240 mm |
