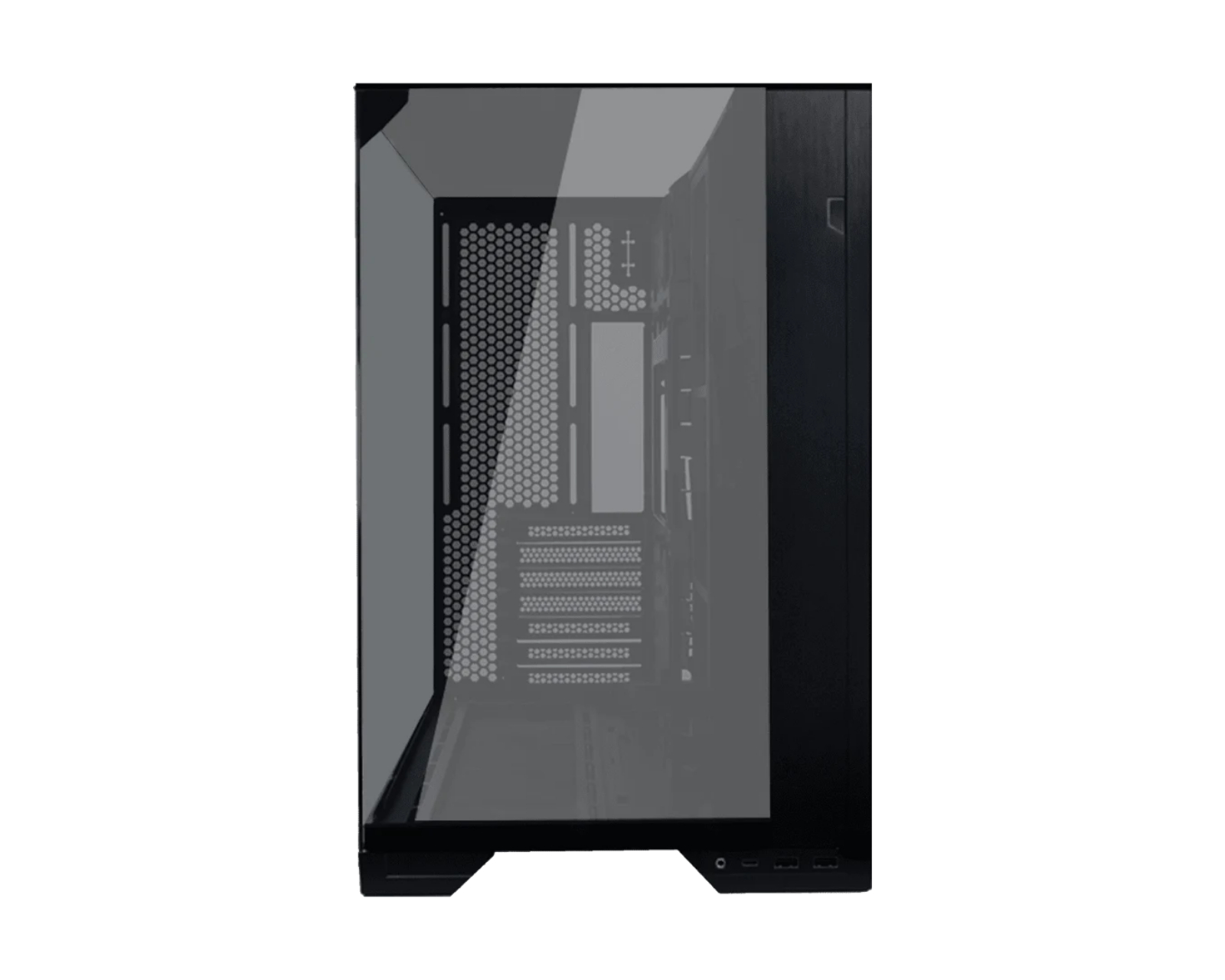

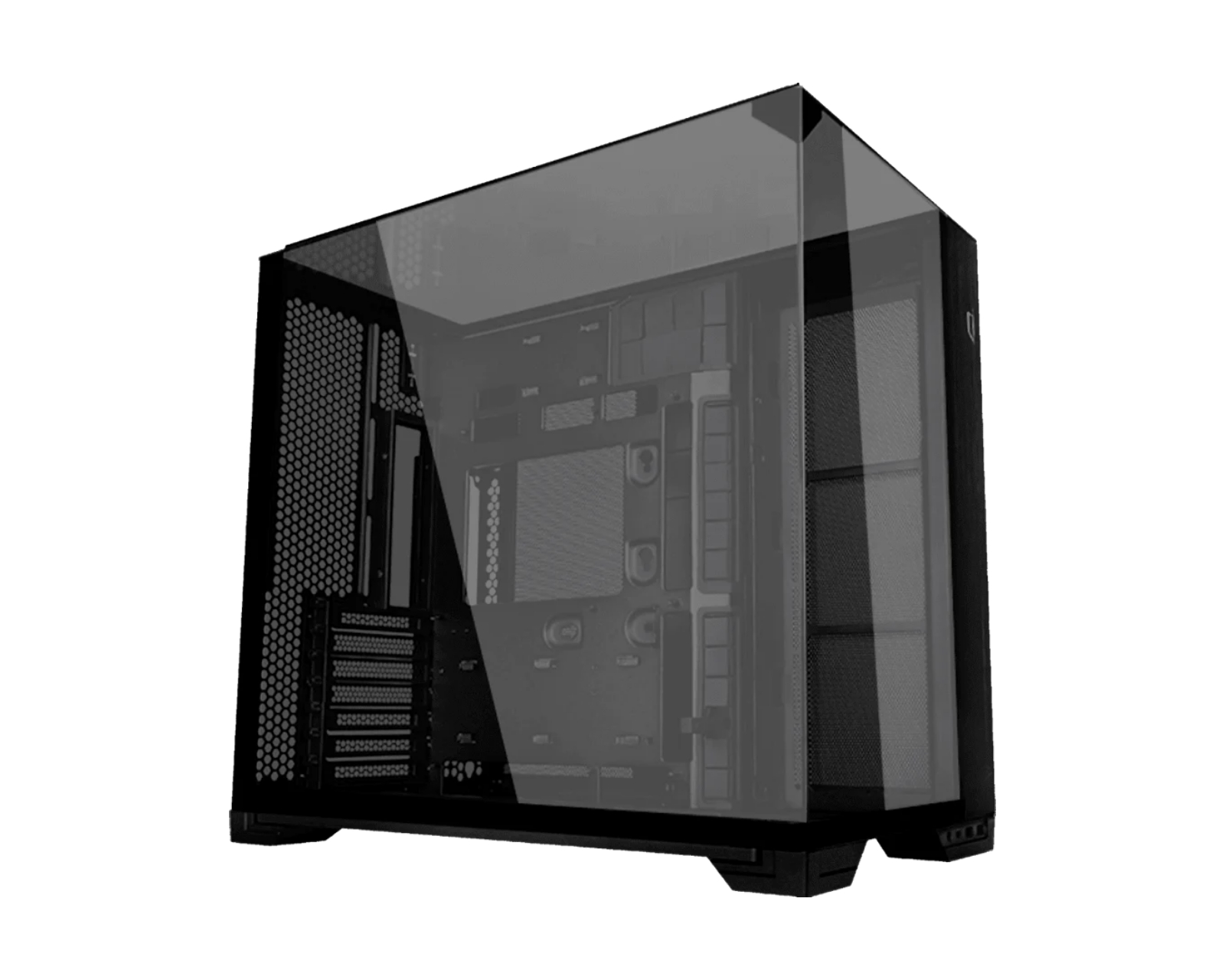

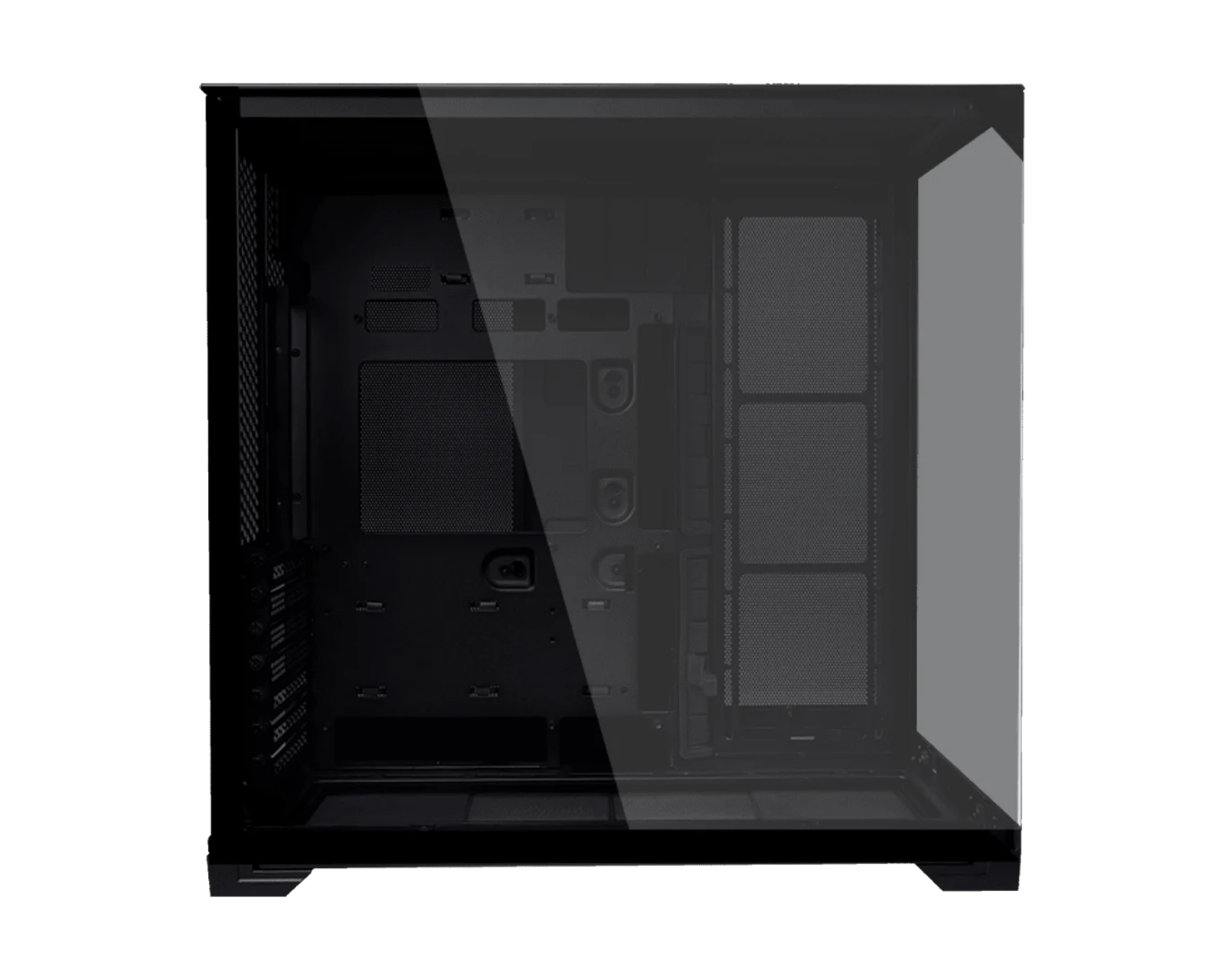

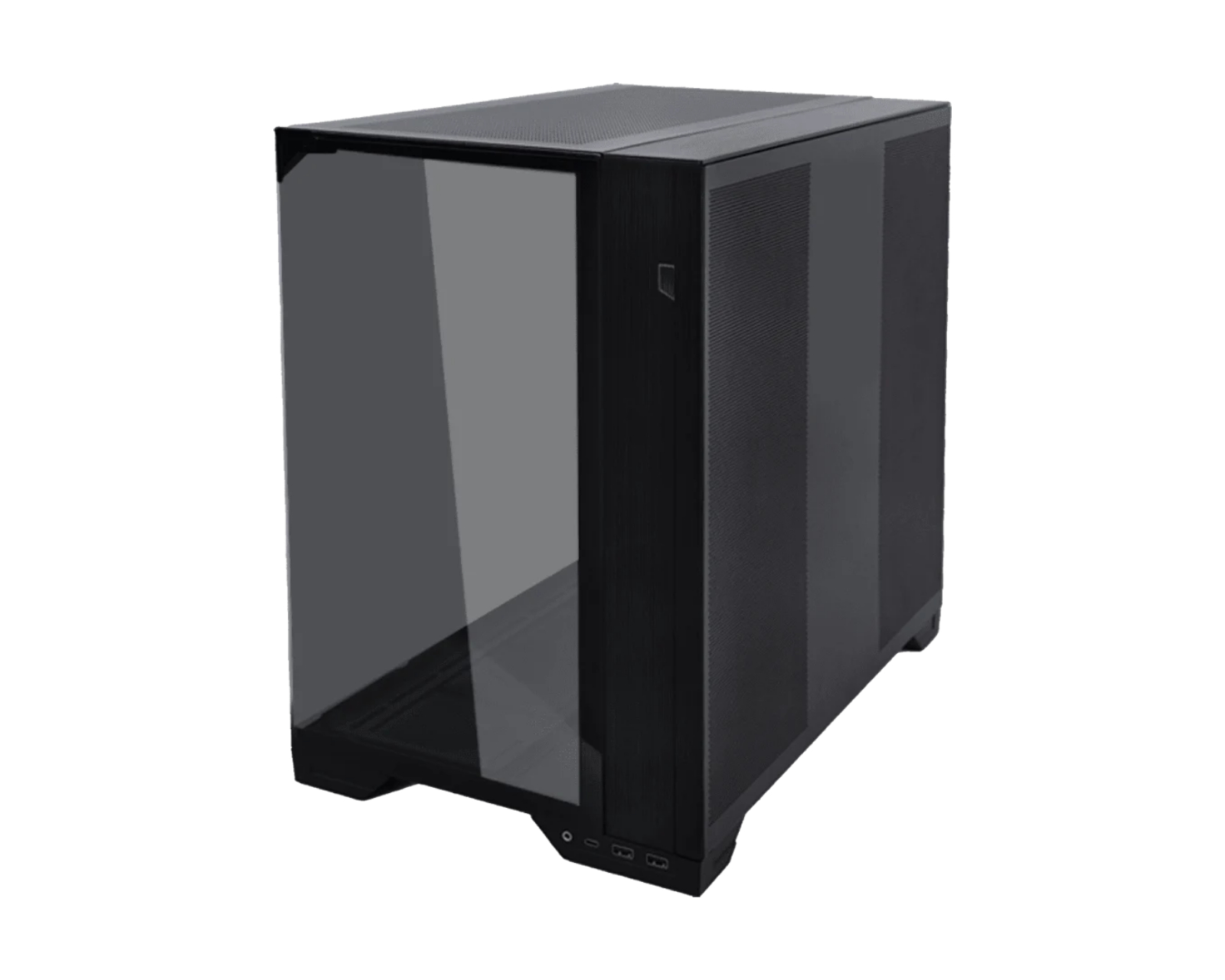

Lian Li O11 Vision Compact Chassi - Black

Product description

News from Lian Li

O11 Vision Compact is a chassis from Lian Li that combines smaller dimensions with large capacity for gaming hardware. With dimensions of 446.4mm x 287.5mm x 447.5mm (HxWxD) and an internal volume of 57.4L, it offers space for CPU coolers up to 167mm and graphics cards up to 408mm. The chassis is equipped to support up to fourteen fans and multiple radiators, allowing for efficient cooling for gamer systems.

The chassis is built with three panels of tempered glass, providing a clear view of the contents. The front and side panels have a slight tint, while the top panel can be replaced with a mesh panel for better ventilation. The innovative lock and key system ensures that the panels are held in place without support pillars. O11 Vision Compact supports hidden cable connections and has extensive options for cable management.

Summary

• Triple tempered glass panels
• Capacity for three 360mm radiators
• Contributes to a sleek and organized gaming setup
• Superior cooling potential with options for multiple fan configurations
• Adjustable anti-sag support for graphics cards

Article number:

Our article number: 36545
Manuf. article number: G99.O11VPX.00

Front panel

Audio output (3,5mm)	Yes
Microphone input (3,5mm)	Yes
USB 3.0/3.1 Gen 1	2 pcs
USB 3.1 Gen2 Type-C	1 pcs

Hard drive

2.5'' (standard)	2 pcs
2.5''/3.5'' (standard)	2 pcs

Performance

Front fan spots	2 pcs 120mm
Rear fan spots	3 pcs 120mm
Fan spots top	2 pcs 140mm, 3 pcs 120mm
Fan spots side	3 st 120mm

Properties

Type of side panel	Glass clear
Form factor	ATX, mATX
Side panel	Window
Motherboard support	ATX, E-ATX, mATX, Mini-ITX
Backlight	No
Colour	Black
Dust filter	Yes
Expansion spots	7 pcs

Size & weight

Max height CPU-cooler	167 mm
Max length graphics card	408 mm
Max length PSU	220 mm
Width	287.5 mm
Depth	447.5 mm
Height	446.4 mm
Weight	11350 g

Warranty

Manufacturer's warranty

2 year warranty

Water cooling

Rear radiator (max)	360 mm
Radiator top (max)	360/280 mm
