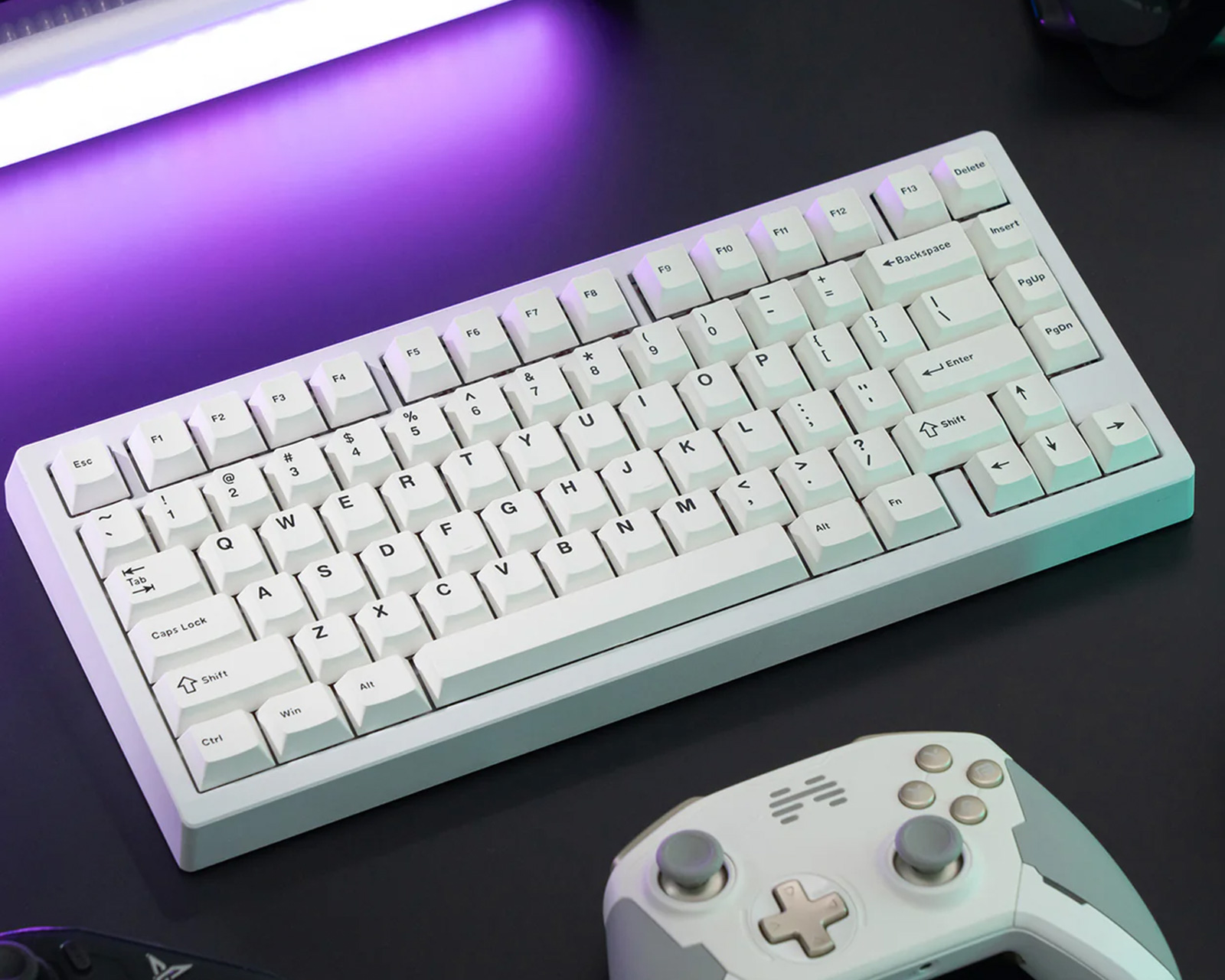

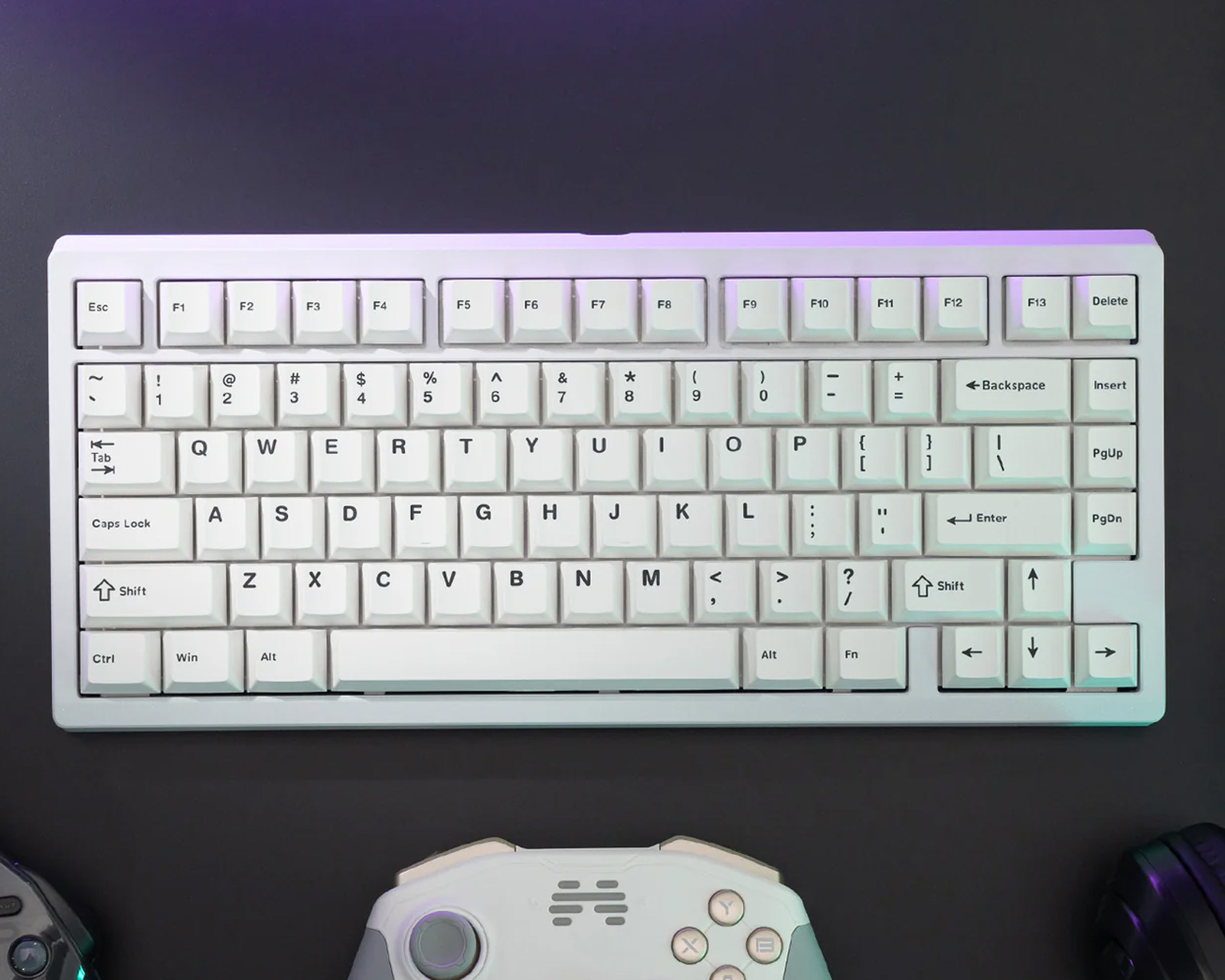

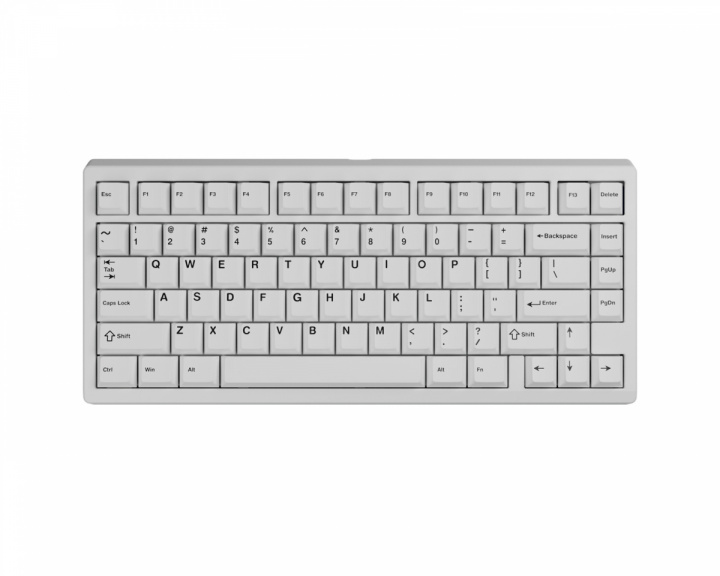

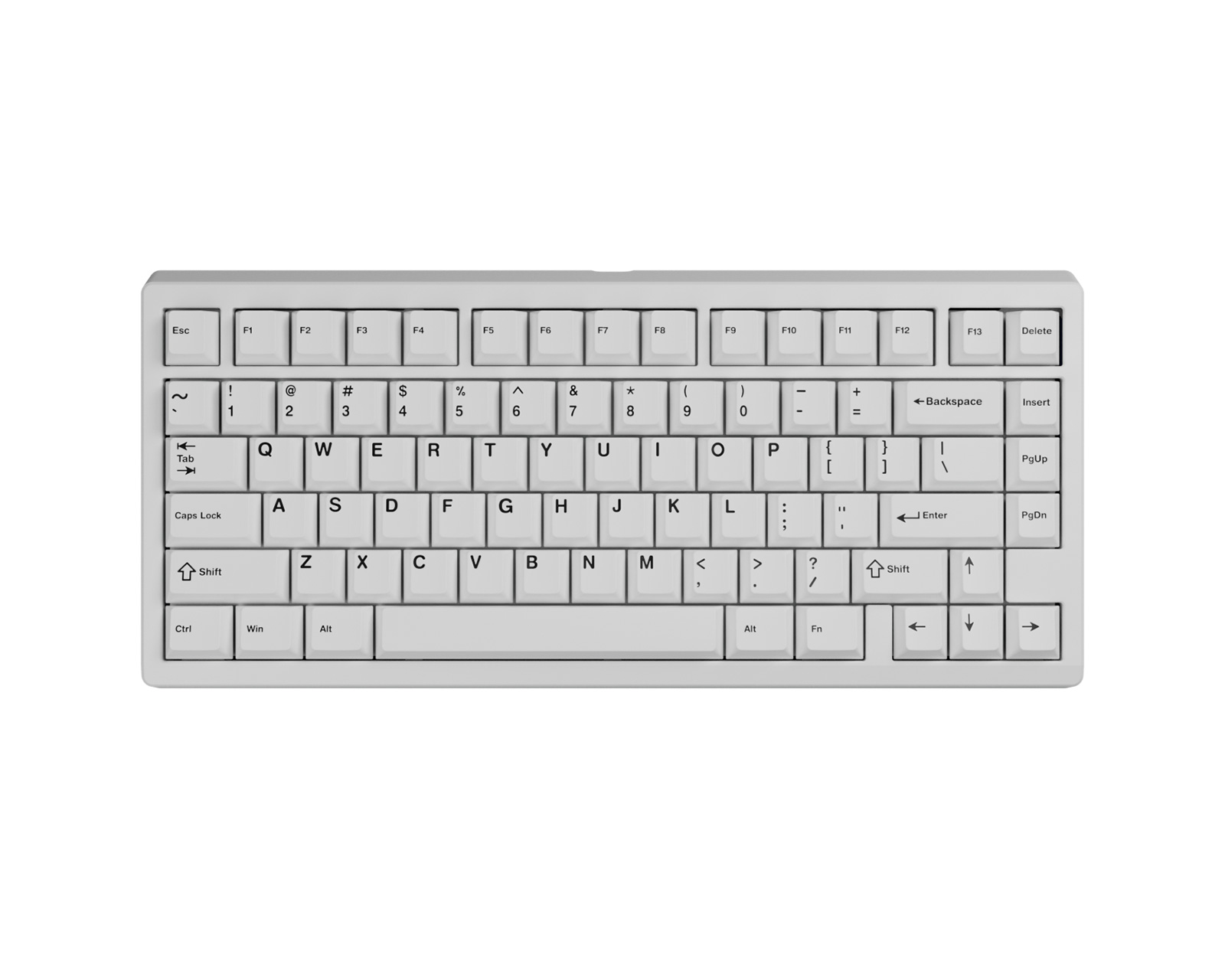

Wuque Studio Zoom75 HE Assembled Edition - White (DEMO)

Product description

Bargain cornerDemo from Wuque Studio

DEMO: Repurchase and test copy. Good condition.

Introducing the ZOOM75 HE, a magnetic switch variant of the popular ZOOM75, designed for precise gaming control.

Experience the difference with magnetic switches that utilize a lower Hall sensor and an upper magnet. The activation point is determined by evaluating the strength of the induced current, providing unique and precise control in every gaming situation.

With automatic calibration via the Baseline Calibration algorithm, the ZOOM75 HE ensures consistent performance despite temperature, humidity or magnetic differences.

Gain the upper hand with adjustable actuation points, from 0.1mm to 4.0mm. Customize the actuation distance for each key to find your ideal key travel distance and elevate your gaming experience with the ZOOM75 HE.

Keyboard Specifications:

• Gasket Mount Design
• ANSI Layout
• 75% Layout
• PCB: 1.6mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Default plate: Alu
• Case Material: 6063 Aluminum
• Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
• Backplate and External Weight: Anodized+Infill
• Switches Type: Gateron KS37B
• The Orientation of the Switches: North Facing
• No SS Internal Weight
• Boog75 Wired Polling Rate: 1000hz
• QMK or VIA Support: No, customization requires the use of our independent driver.
• Total weight: About 3kg

Keycap Specifications:

• Manufacturer: WS PBT
• Keycap Material: Doubleshot PBT
• Keycap Thickness: 1.6mm
• Keycap Profile: Cherry
• Keys QTY: 81 keys

Switch Specifications:

• Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
• Initial Force: 30±10gf.
• Total travel: 4.0±0.2mm.
• Operation Lifetime: 150,000,000 Cycles.
• Bottom Force: 50±10gf.
• Top Housing Material: Thermoplastic, Transparent
• Bottom Housing Material: Thermoplastic, Red
• Stem Material: Thermoplastic, Red
• Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extended the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Each switch features a very tight housing and a perfect coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Kit Contents:

Fully Assembled Keyboard, including:

1. Top and bottom cases
2. HE Module (Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
3. Case foam
4. The themed keycaps
5. Tools accessories

Article number:

Our article number: D30378
Manuf. article number: WS-ZOOM75-HE-WT
