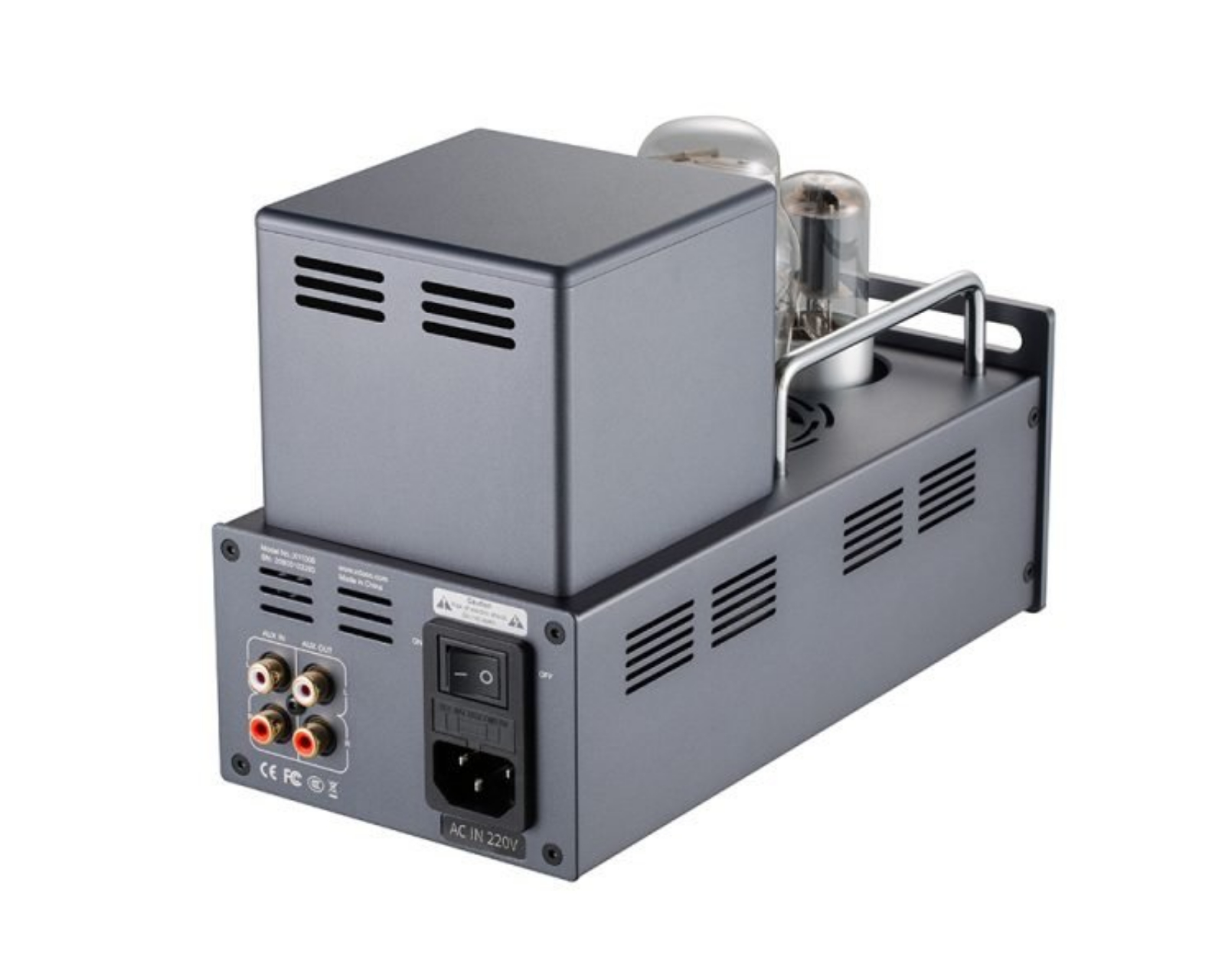

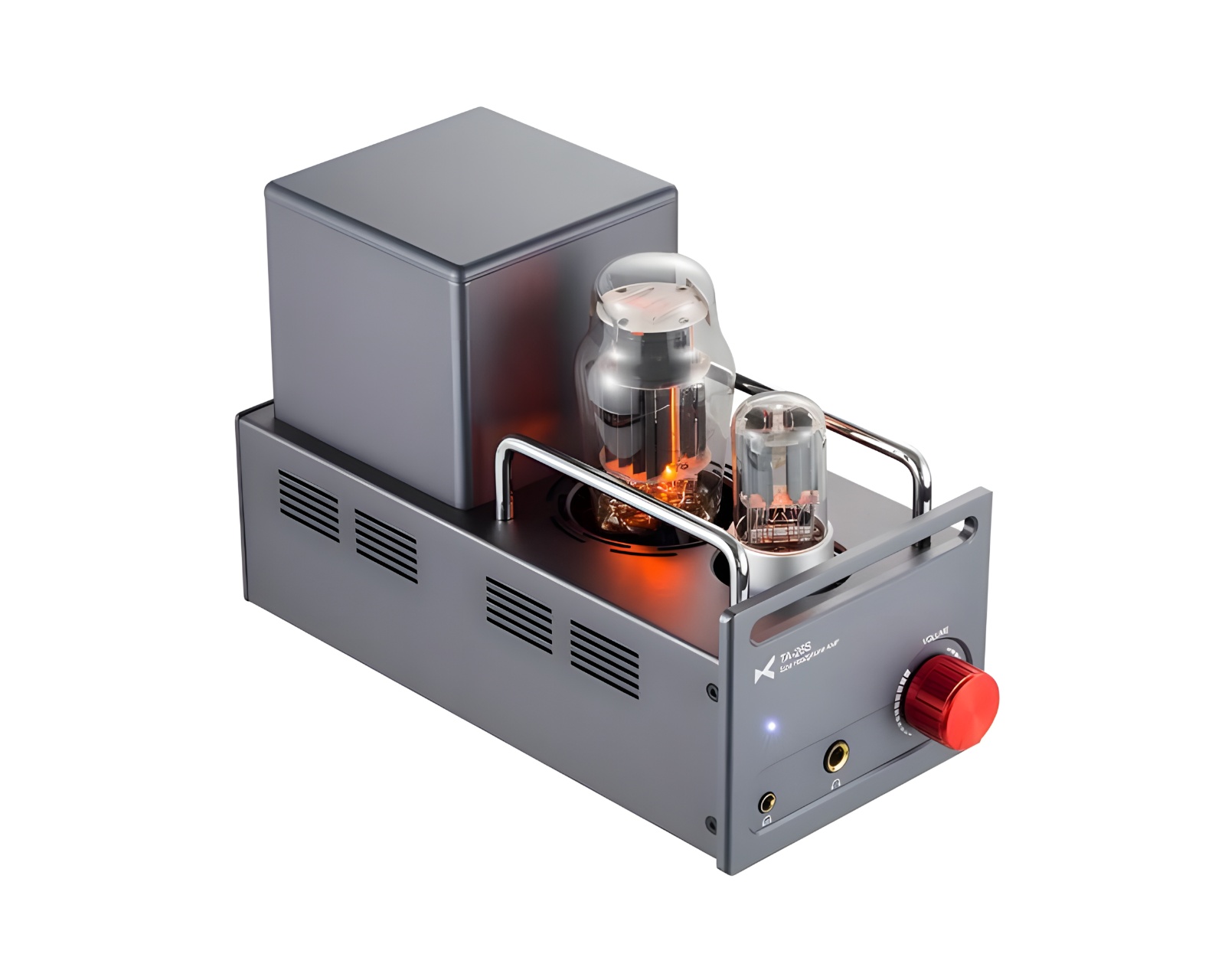

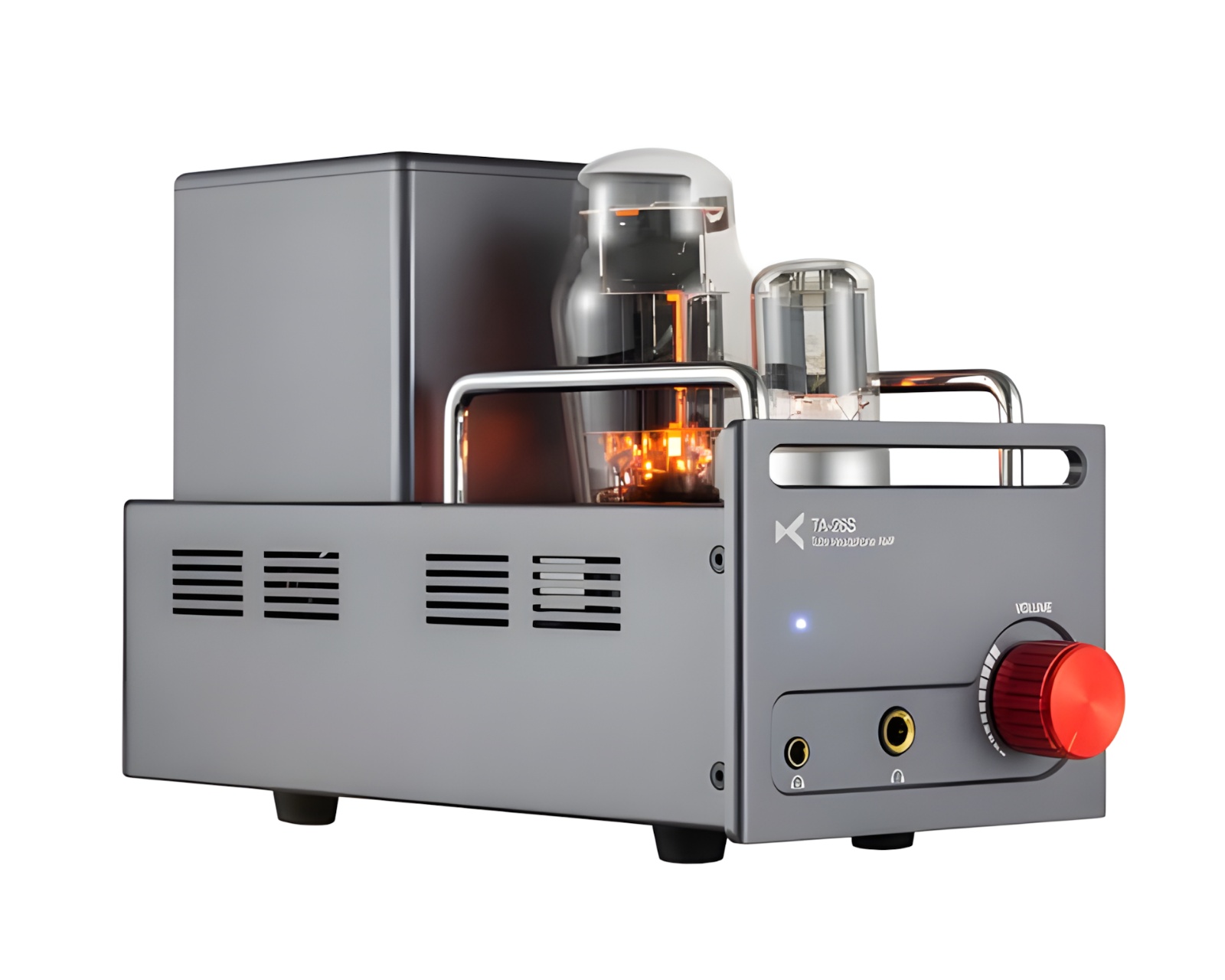

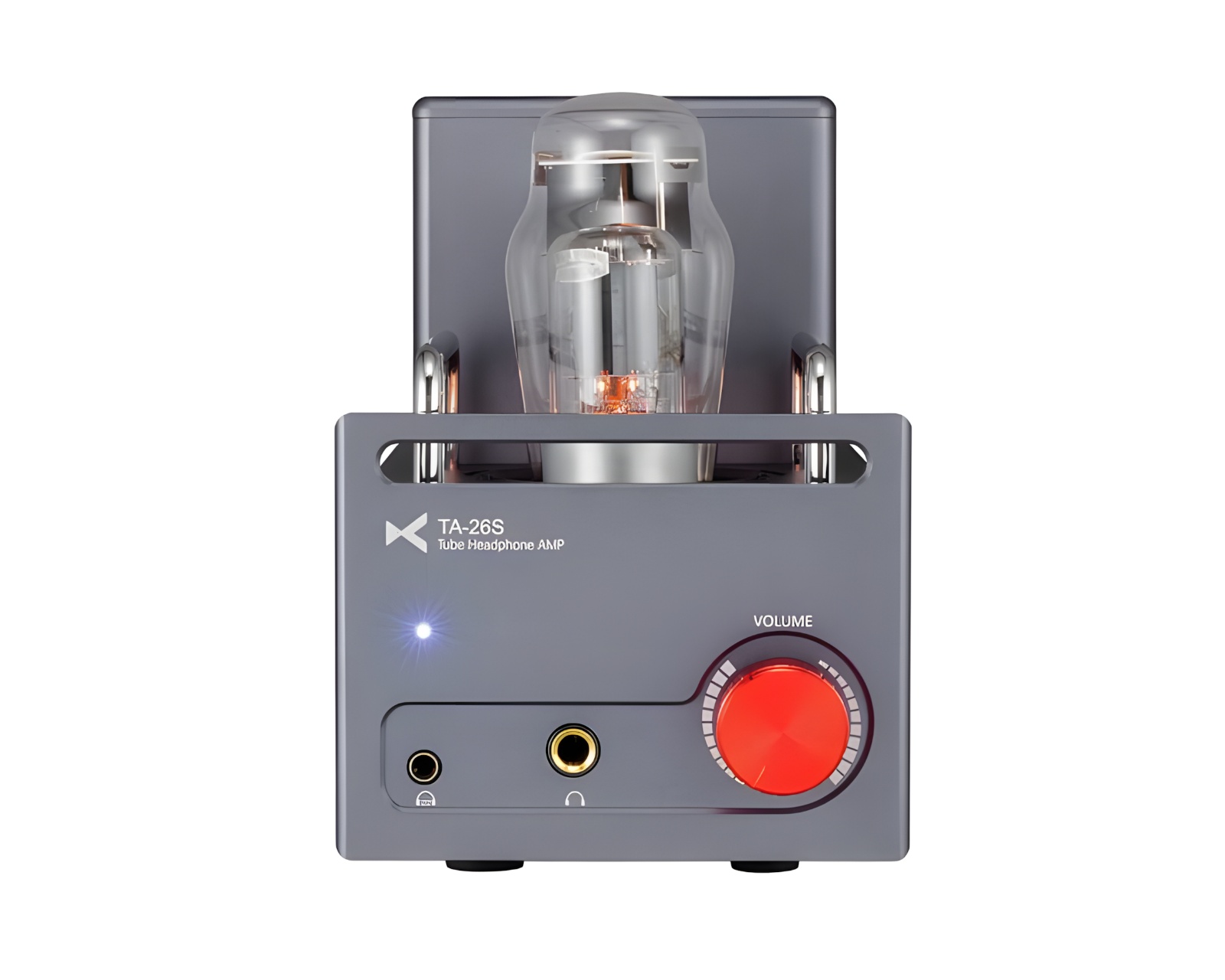

xDuoo TA-26S Tube Balanced Headphone Amplifier

Product description

PC PeripheralsHeadsets & AudioExternal sound cards from xDuoo

TA-26S is a tube-balanced headphone amplifier from xDuoo that offers a high-performance audio solution for headphone users. It features a 6N8P vacuum tube in the preamp stage and a 6N5P vacuum tube in the buffer stage. TA-26S is designed to drive headphones with impedances between 60Ω and 600Ω and delivers up to 500mW of power with total harmonic distortion of ≤0.1%.

The product includes both a standard 6.35mm headphone output and a new 4.4mm balanced headphone output for higher sound quality. It is equipped with professional resistors and capacitors, contributing to a signal-to-noise ratio of 110dB. The frequency response ranges from 10Hz to 30kHz. The build quality is characterized by a sandblasted aluminum chassis, providing a robust design. TA-26S has an RCA preamp function as well as an RCA line-out function.

Summary

• High-performance tube-balanced headphone amplifier
• Power output of up to 500mW, THD+N: ≤0.1%
• For headphone users with 60Ω to 600Ω impedance
• Preamp and line-out functionality
• Aluminum housing with sandblasted texture

Product Specifications:
Power Supply

• AC100~120V / 220~240V

Output Power

• 500mW (at 600/300Ω load)

Frequency Response

• 10Hz~30KHz (±0.5dB)

Audio Performance

• Gain: +16dB

• S/N (Signal-to-Noise Ratio): 110dB

• THD+N (Total harmonic distortion + noise): ≤0.1% (at 1KHz)

Compatibility

• Suitable Headphone Impedance: 60Ω ~ 600Ω

Other

• Size: 25 x 11 x 16 cm

• Weight: 3.9 Kg

Article number:

Our article number: 36497
Manuf. article number: 8413222399128

Properties

Colour

Grey

Warranty

Manufacturer's warranty

1 year warranty
