BenQ Ergo Arm BSH01 - Black

Product description

News from BenQ

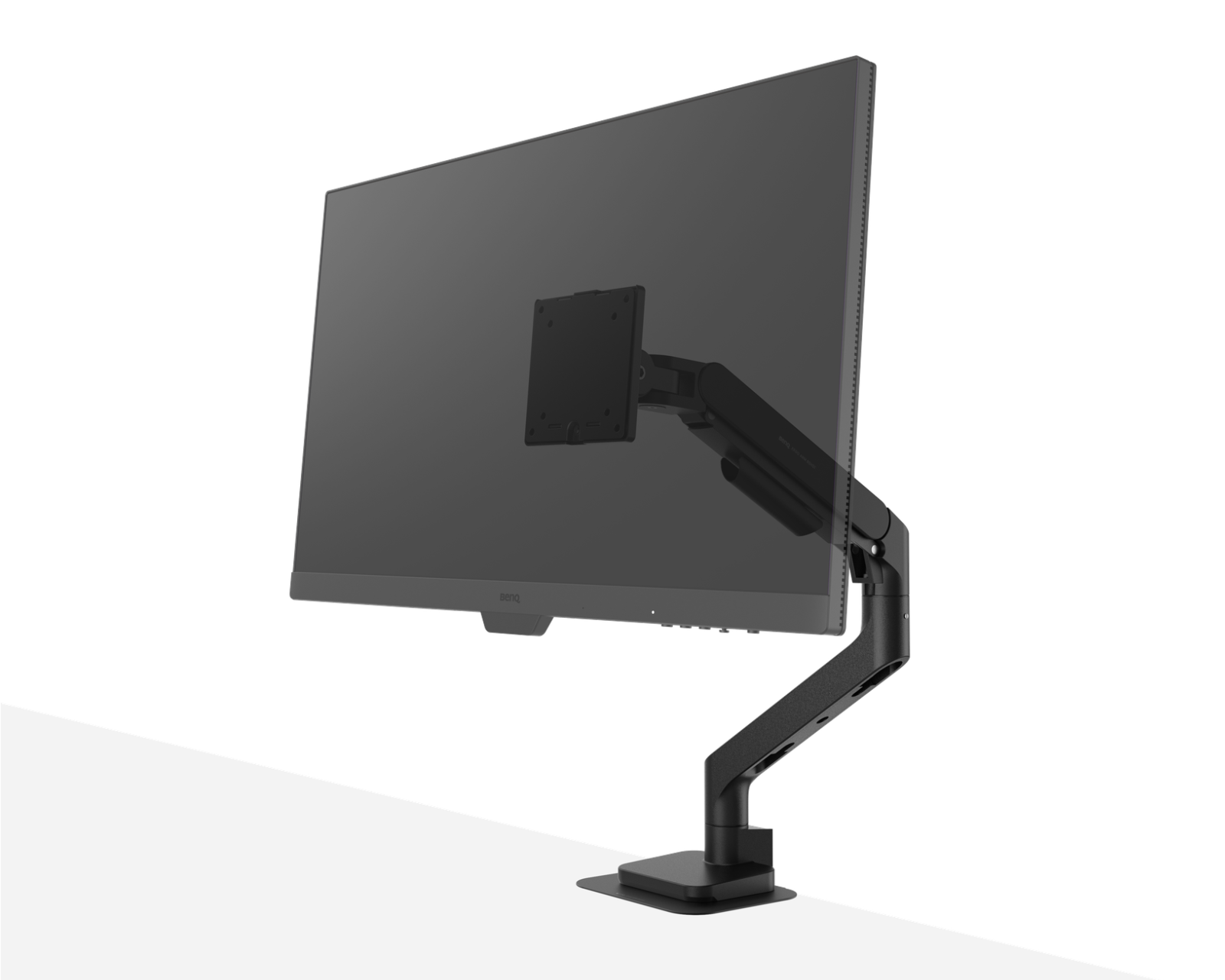

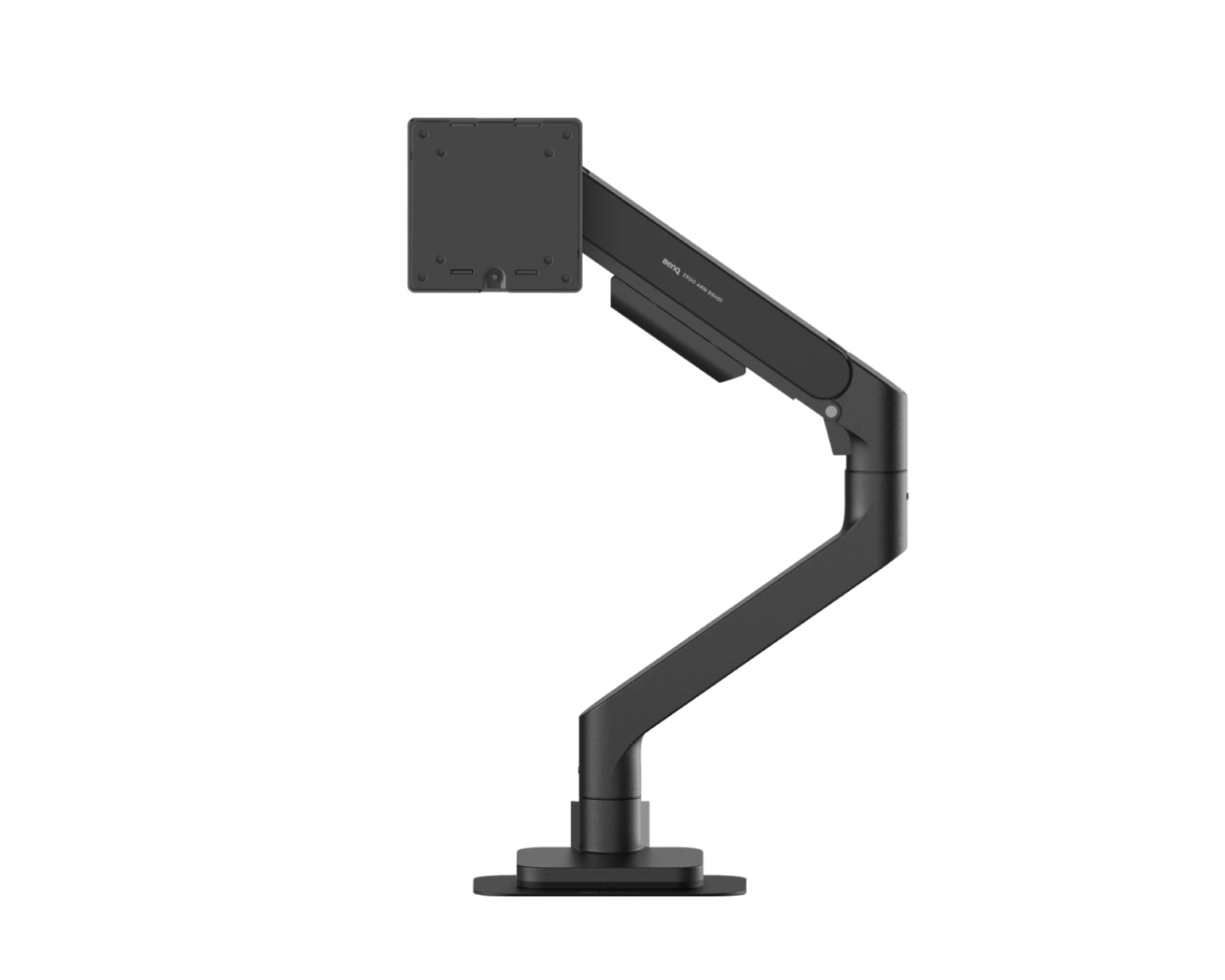

The Ergo Arm BSH01 is a monitor arm from BenQ designed to support easy and effective height adjustment of screens up to 45 inches, with a maximum weight of 20 kg. It is equipped with a gas spring mechanism that offers smooth height and tilt adjustment. The monitor arm can be mounted with a clamp mount and is compatible with the VESA standards 100x100 mm and 75x75 mm, making it suitable for various screen types.

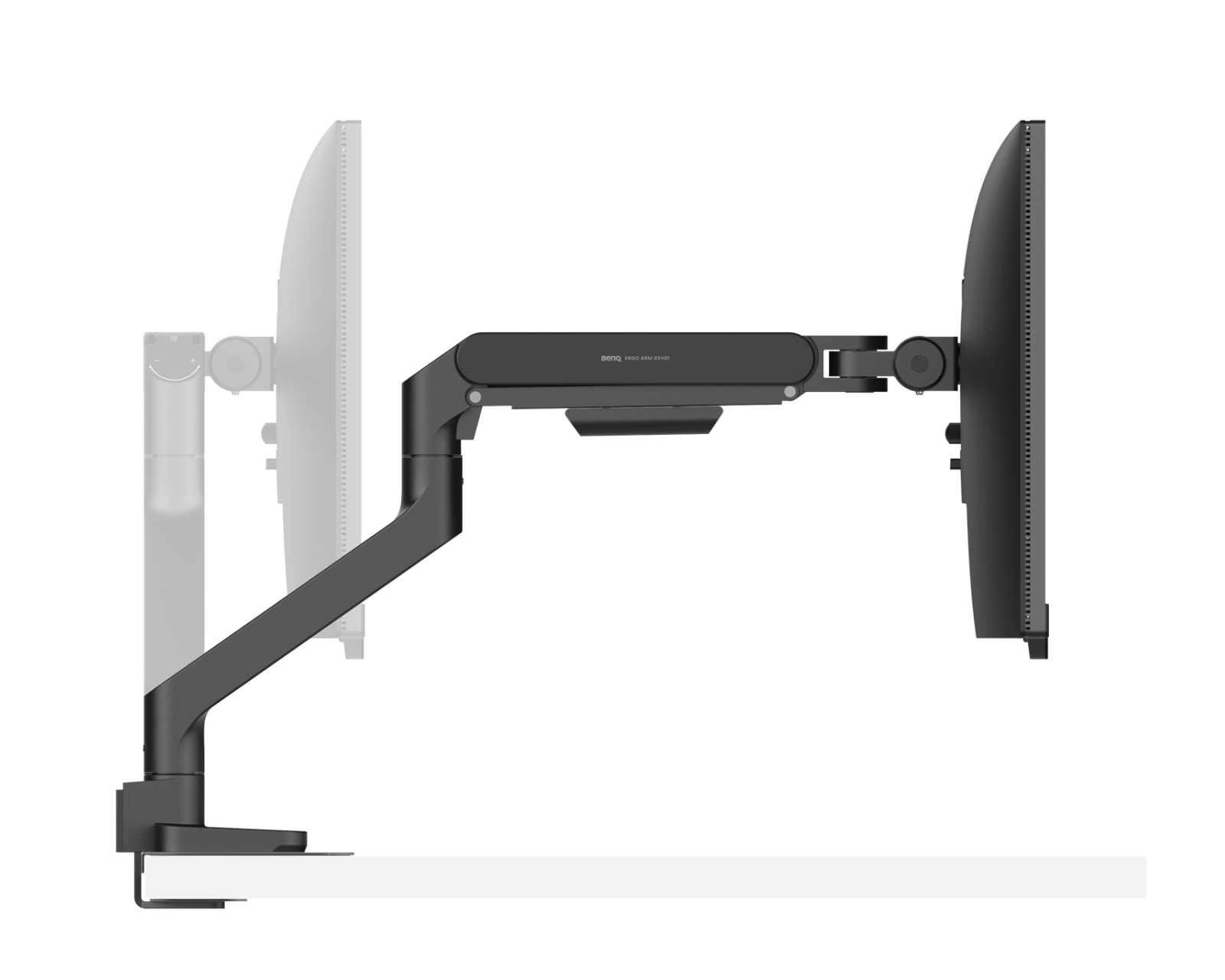

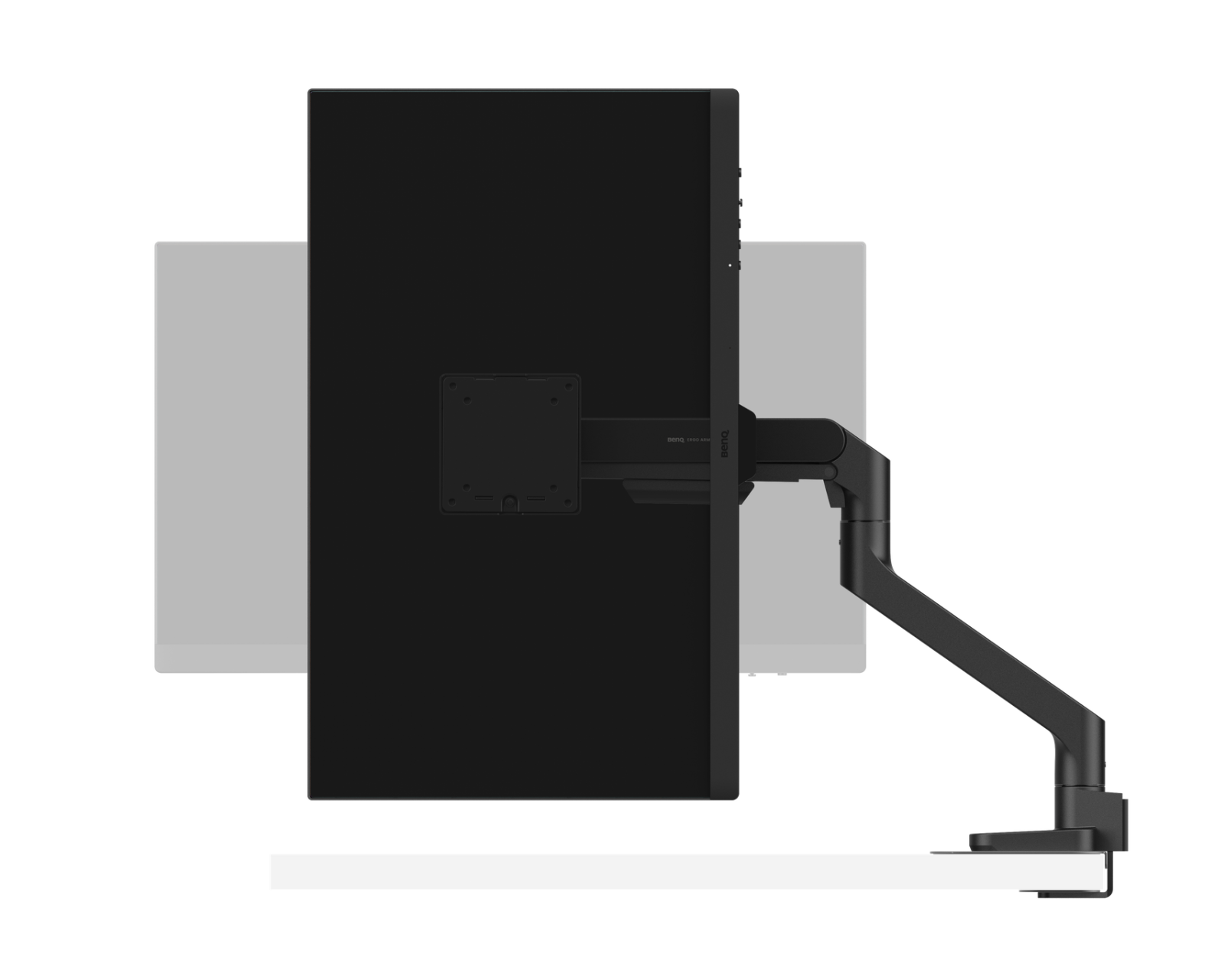

The Ergo Arm BSH01 offers a robust construction with high quality materials, contributing to stability and durability. With a swivel range of +90° to -90° and a rotation range of +180° to -180°, the user can adjust the display to their needs. The improved cable management contributes to a neat and organized workspace, minimizing distractions. The pre-set tension mechanism ensures that the display can be easily adjusted to the desired position without complicated adjustments.

Summary

• Gas spring mechanism for height and tilt adjustment
• Maximum weight: 20 kg
• Compatible with VESA 100x100 mm and 75x75 mm
• Swivel range: +90° to -90°, rotation: +180° to -180°
• Clamp mount for easy installation

Article number:

Our article number: 35228
Manuf. article number: 9H.A39DD.LBW

Brand

Features

VESA-plate	100x100, 75x75, Yes
Cable management	Yes

Properties

Monitor size	17-45"
Number of screens	1
Rotation	+180°~-180°
Swivel Range	+90°~-90°
Mounting	Clamp

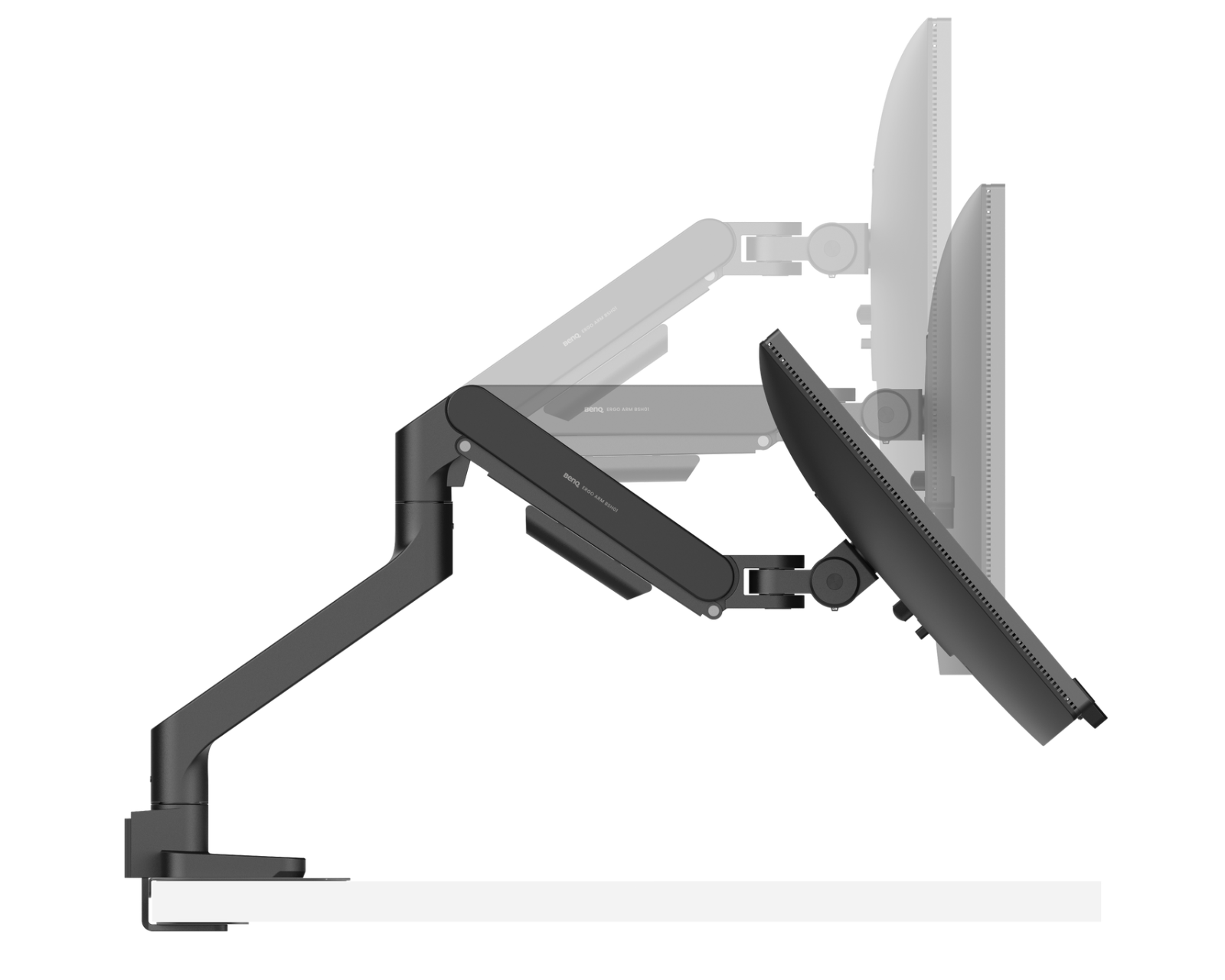

Tilt	+50°~-20°
Colour	Black

Size & weight

Max load per screen	20 kg
Depth	Max: 56.8 cm

Warranty

Manufacturer's warranty

2 year warranty
