Product description
PC PeripheralsCables & adaptersNetwork cable from Lanberg

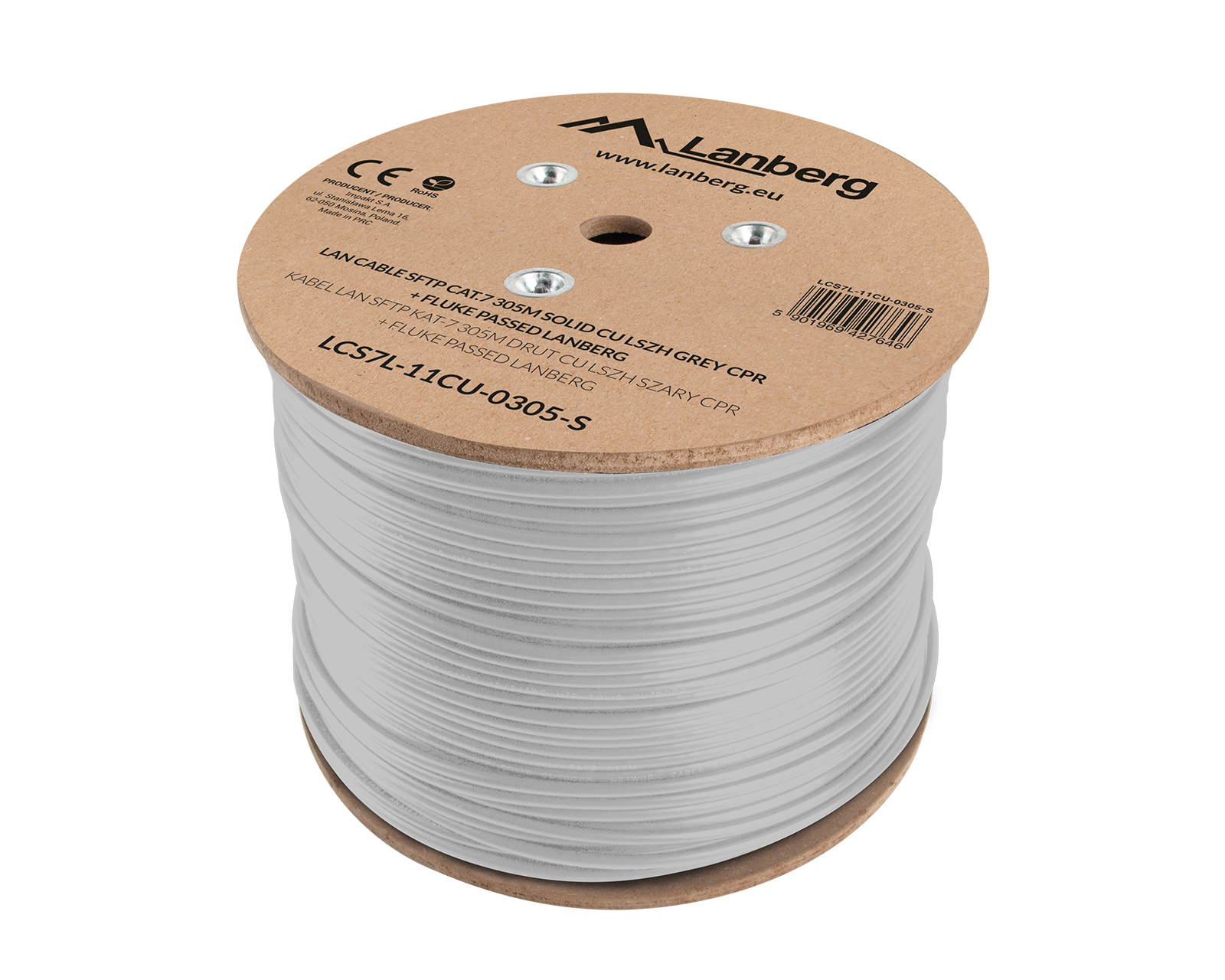

Lanberg bulk CAT7 network cable - 305 mShielded foiled twisted pair (SFTP) with solid, length indication, test fluke pass and HDPE conductor insulation.
Specification:
- LAN cable category 7 SFTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.58mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 7.8mm.
- HDPE conductor insulation: 1.38mm.
- Operation up to 600Mhz.
- Recommended connector / guide diameter for braided cables: 1.45 mm.
- Package: Wooden Drum.
- Packaging dimensions (W x D x H): 50x50x52 cm.
Electrical characteristics (20 degrees):
- Direct-current resistance: ?9.5?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15 (4~250MHz) 100?±22(250~600MHz).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
Article number:
Our article number: 17763
Manuf. article number: LCS7L-11CU-0305-S
Brand
Cable solutions for everyone with Lanberg - Development and flexibility defines Lanberg, which provides various solutions in networking and cabling. Their wide product range is constantly evolving and the brand is based on their products receiving continuous quality improvements. Their talent for tailoring products to market needs has contributed to continuous growth.
If you are looking for a cable or adapter, Lanberg with its broad product portfolio probably has what you are looking for. In addition, it offers solutions such as structured cabling, including LAN and patch cables, as well as tools for building LAN network infrastructures. You will also find tools and products that help facilitate cables correct.
Specifications
Connection
Connection from | RJ45 (Male) |
Connection to | RJ45 (Male) |
Properties
Cable type | Cat7 |
Technique | S/FTP |
Form factor | Round |
Colour | Grey |
Size & weight
Cable length | 305 m |
Warranty
Warranty | 2 year warranty |
