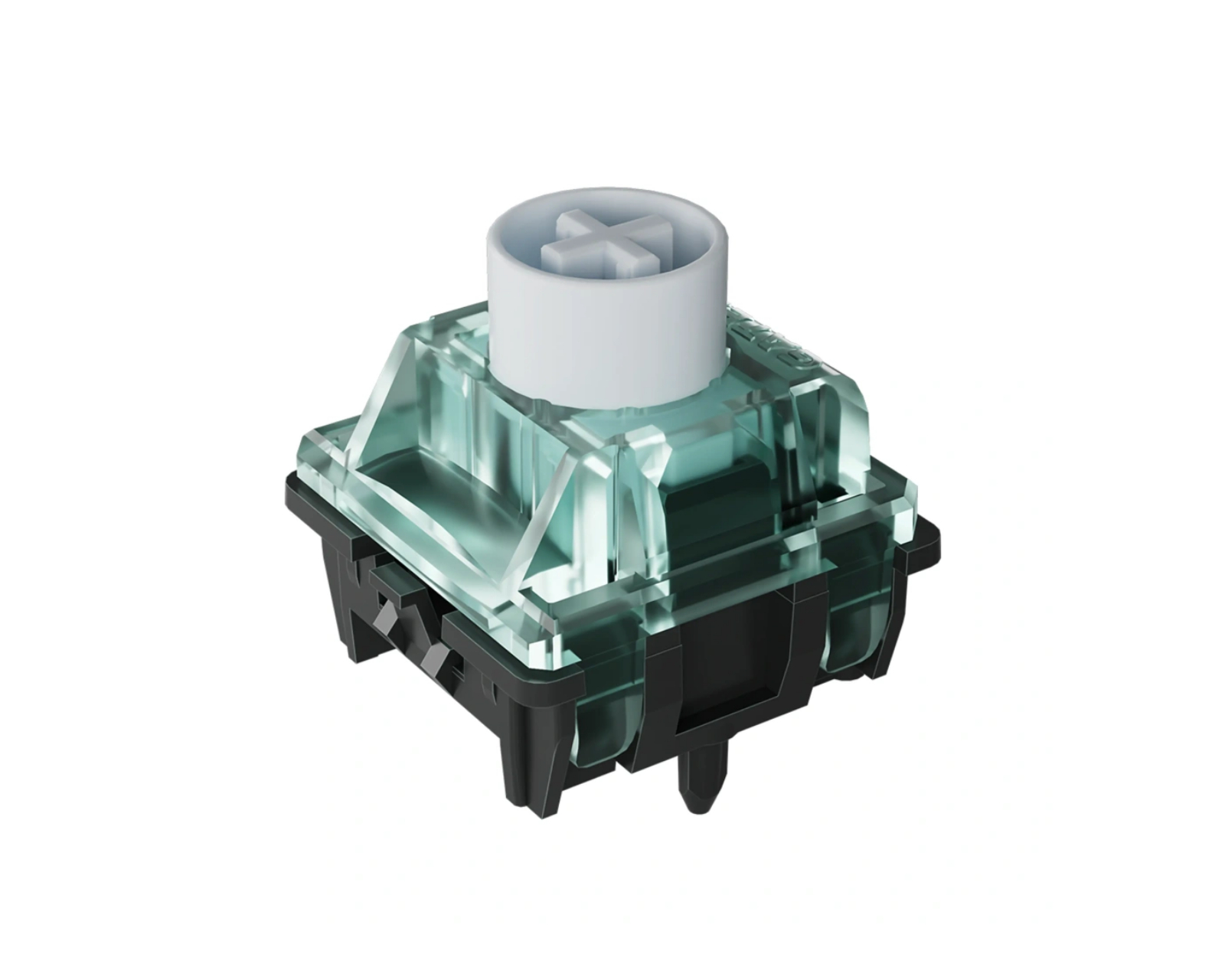

Gateron Magnetic Jade Attraction Linear Switch

Product description

PC PeripheralsKeyboards & AccessoriesCustom keyboardSwitches from Gateron

Gateron Magnetic Jade Attraction Linear Switch is an innovative switch designed to optimize the typing experience. With an initial force equal to the bottom-out force, heavy resistance during press is eliminated. The total travel is 3.2 mm and the preset force range is 30±3gf. This product is particularly suitable for writers and gamers seeking precision and comfort during use.

The core of this switch is the three-phase magnetic ring, which enables a consistent and light pressing experience. The unique magnetization direction, with both vertical and horizontal placement, ensures a symmetrical and stable magnetic field. The switch features a cylindrical design that counteracts movement during use and provides constant vertical motion throughout the pressing. The acoustic double back cover design also contributes to a clear and satisfying sound during typing. The switch is pre-lubed, which minimizes friction and guarantees a clean sound without disturbances.

Summary

• Typing: Linear
• Initial Force: 30±3gf
• Bottom-out Force: 30±3gf
• Pre-Travel: Freely setting
• Total Travel: 3.2±0.2mm
• Spring: 18mm Customized Spring
• Initial Magnetic Flux: 150±8GS (PCB1.2mm)
• Bottom-out Magnetic Flux: 570±30GS (PCB1.2mm)
• Pre-Lubed: Yes

Article number:

Our article number: 39688
Manuf. article number: KS-20CFW10B030NW-Y124

Properties

Hall Effect	Yes
Type	Linear

Warranty

Manufacturer's warranty

1 year warranty
