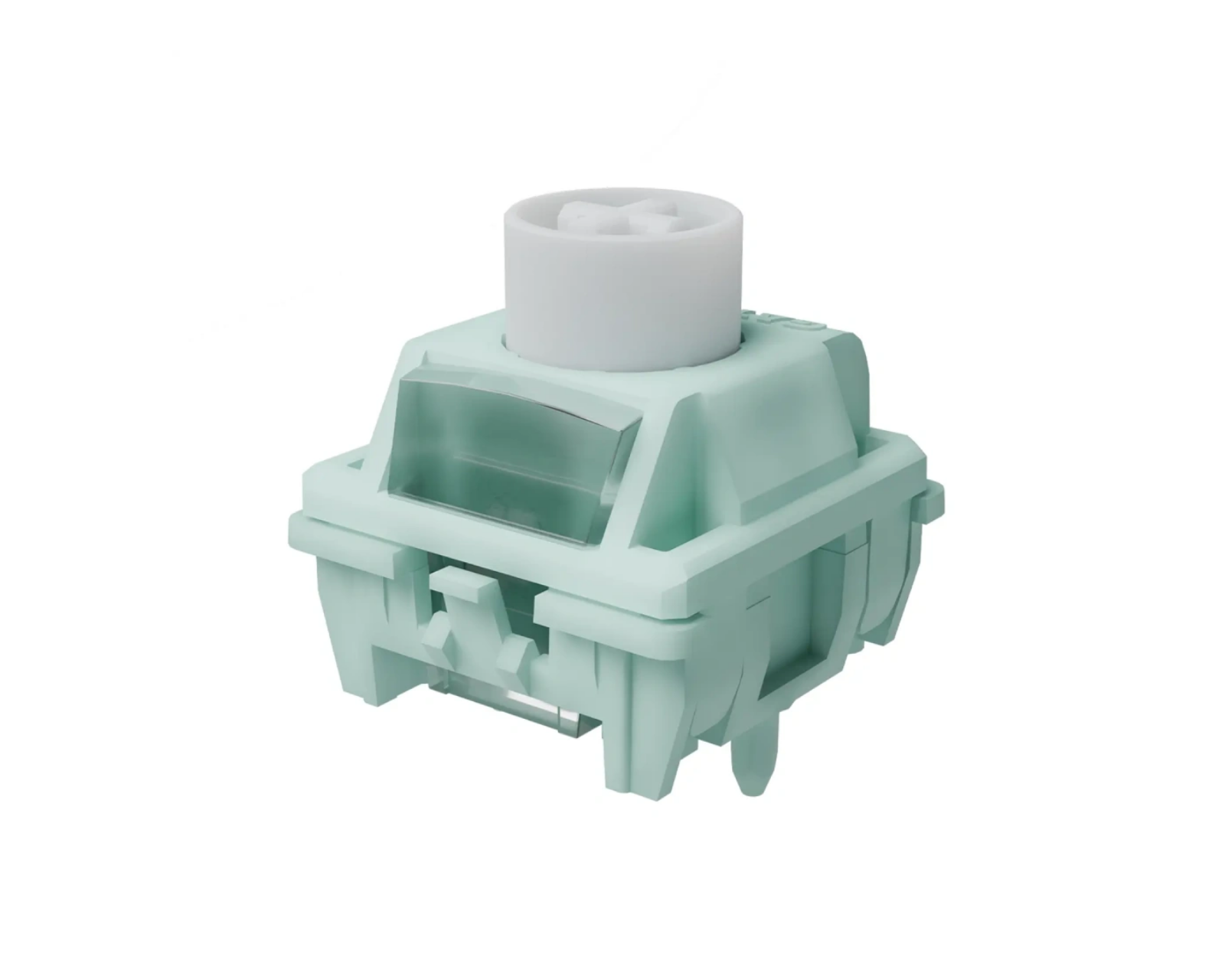

Gateron Magnetic Jade Silent Switch

Product description

PC PeripheralsKeyboards & AccessoriesCustom keyboardSwitches from Gateron

Magnetic Jade Silent Switch is designed to provide a quiet and responsive typing experience. It has an initial force of 33±5 gf and a bottom-out force of 45±10 gf, which ensures a balanced resistance during use. With a total travel of 3.2±0.2 mm and a freely set pre-travel, this switch is suitable for both gaming and office work where noise level is an important factor.

The magnetic technology in Magnetic Jade Silent Switch enables faster and more reliable activation compared to traditional mechanical switches. Initial magnetic flux is at 125±8 GS at PCB 1.2 mm, providing high sensitivity. Bottom-out magnetic flux reaches 700±30 GS at the same PCB thickness, contributing to stability and responsiveness in every keystroke. The switch's springs are customized to optimize the typing feel, and it is already pre-lubed for better performance and comfort.

Summary

• Typing: Linear
• Initial Force: 33±5gf
• Bottom-out Force：45±10gf
• Pre-Travel: Freely setting
• Total Travel: 3.2±0.2mm
• Spring: Customized Spring
• Initial Magnetic Flux: 125±8GS (PCB1.2mm)
• Bottom-out Magnetic Flux: 700±30GS (PCB1.2mm)
• Pre-Lubed: Yes

Article number:

Our article number: 39689
Manuf. article number: KS-20MJF10B045NW-G62

Properties

Hall Effect	Yes
Type	Linear

Warranty

Manufacturer's warranty

1 year warranty
