Endgame Gear XM1r Gaming Mouse - Dark Reflex
Endgame Gear XM1r
The XM1r is a refresh of the XM1 Gaming Mouse. Available in an additional two editions, it
has an updated PixArt PAW3370 optical sensor and custom - sorted Kailh GM 8.0 switches.
It also sports a hybrid skate design and all-new firmware and software developed in Germany.
Patented Analogue Technology
The XM1r can go beyond traditional signal debouncing to detect clicks thanks to patented
analog technology. This is a superior method compared to normal digital approaches.
Whereas digital signal processing can only detect two levels of feedback (1/0), the XM1r
implements an advanced algorithm to drive faster click detection for a reaction time of less
Built for Tournament Performance
The XM1r, like its predecessor has been developed by esports veterans for use in
competitive play. It has a sleek and durable shell design, with top-of-the-line components
including the PixArt PAW3370 sensor and custom-sorted Kailh GM 8.0 switches. The
firmware and software have been newly developed in Germany to maximize the XM1r’s
The XM1r’s responsiveness is significantly improved by the implementation of the PixArt
PAW3370 sensor with
a resolution of up to 19000 CPI, 1mm of Lift-Off-Distance and up to
400 IPS. Every effort has been made to squeeze the last ounce of performance from this
sensor. With all smoothing, angle-snapping and power-saving features being disabled, thetracking data from the sensor is as raw as it can be.
Advanced switches and technology
Custom Kailh GM 8.0 switches have been used for the XM1r's main buttons. These have
been pre-sorted to an operating force of 55-60gf, which results in an extremely pleasant and fast click.
The TTC micro switches used for the side button have been improved for a crisper click feeling and improved durability.
Hybrid skate design

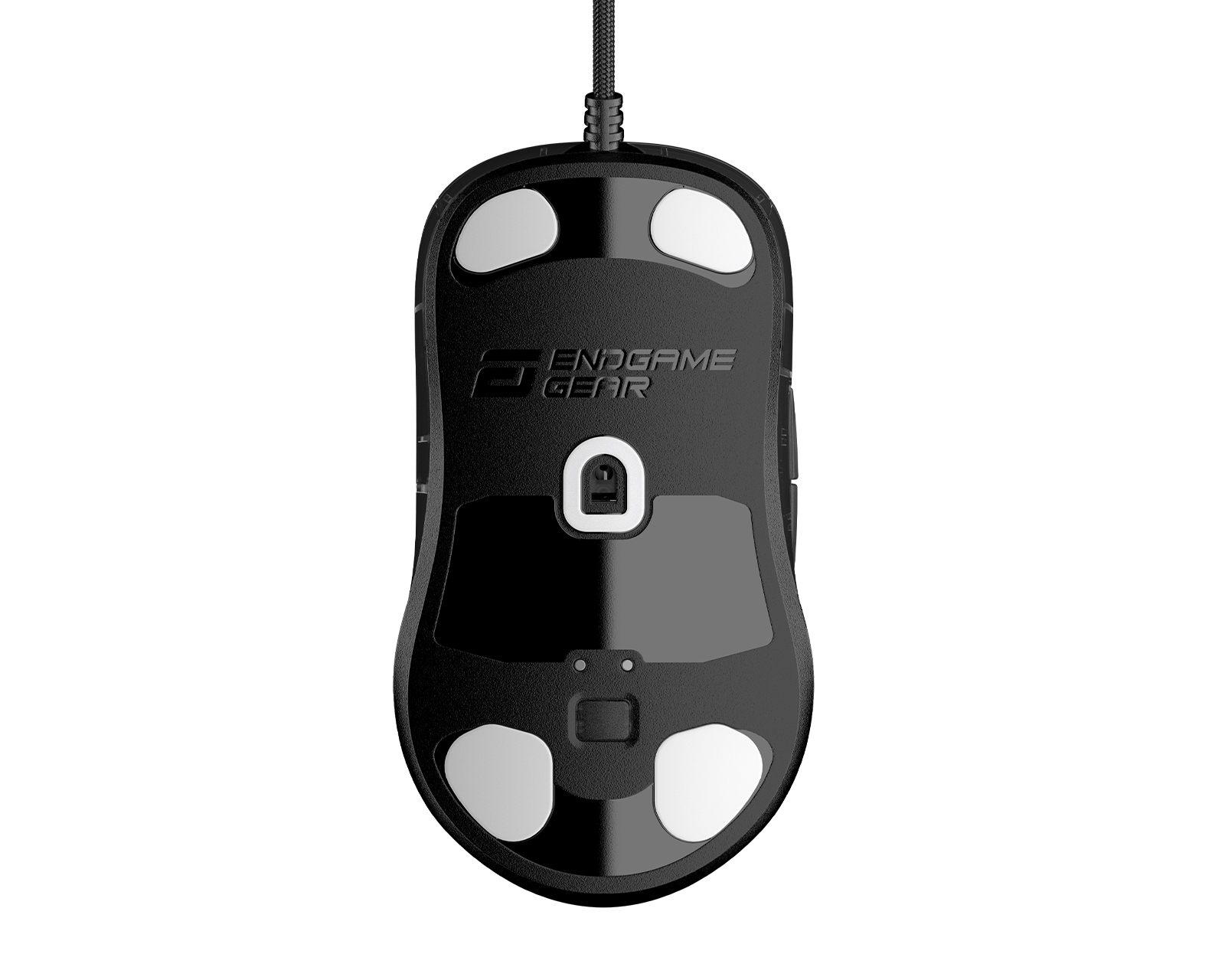

The XM1r comes with both large and small PTFE skates. Thanks to a hybrid design bottom
shell it is possible to easily install either large or small skates with the small skates being
fitted by default. This offers added flexibility when it comes to customizing the XM1r's glide.
New colours same great design
The XM1r is available in two new editions inaddition to the classic black and white.
DarkFrost and Dark Reflex both feature dark semitransparent shells.
Dark Reflex has a glossy finish while Dark Frost has a matte one.
The flex cord has received an improvement as well. Retaining the flexibility of the previous
iteration, it is now more durable.
Our article number: 17753
Manuf. article number: GG-XM1R-DR
Products in bundle
Find your Endgame with Endgame Gear - The team at Endgame Gear consists of a gang that has a passion for developing the right instrument that enables them to take their gaming to the next level, regardless of skill level. Their product developer is former CS professional player Johnny R, who is also behind the development of the mouse SteelSeries Xai, which is the basis for the infamous Sensei and Kinzu.
Endgame Gear's first mouse, the XM1, has taken the entire industry by storm with its simple yet well-thought-out design. Every detail of Endgame Gear's products is carefully thought out to give you the edge over your opponents and to be able to perform at the top. Do not let your gaming equipment hold you back. Find your Endgame.
|Sensor model||PixArt PAW3370|
|Max acceleration||50 G|
|Number of buttons||6|
Size & weight
|Cable length||1.7 m|
|Warranty||2 year warranty|
